3749 Series

Catalog

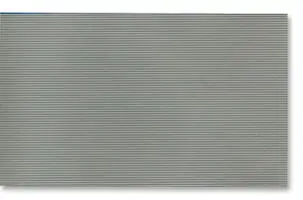

CABLE RIBBON 30COND 0.025 GRAY

Part	First Conductor Mark	Insulation Resistance	Conductor Material	Ribbon Width [custom]	Ribbon Width [custom]	Length	Length	Features	Jacket (Insulation) Material	Ribbon Thickness	Ribbon Thickness	Length [x]	Length [x]	Voltage	Number of Conductors	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Pitch	Pitch	Conductor Strand	Cable Type	Wire Gauge	Shielding	Length
3M Electronic Specialty 3749/30 100	Blue	10 GOhm	Copper Tinned	19.05 mm	0.75 in	1 ft 10 ft 25 ft 100 '	3.05 m 7.62 m 30.48 m 304.8 mm	Zippable	Thermoplastic Elastomer (TPE)	0.64 mm	0.025 in	50 ft	15.24 m	150 V	30	Gray	-40 C	105 ░C	0.64 mm	0.025 in	Solid	Flat Cable	30 AWG	Unshielded
3M Electronic Specialty 3749/100 100	Blue	10 GOhm	Copper Tinned	63.5 mm	2.5 in	1 ft 10 ft 25 ft 100 '	3.05 m 7.62 m 30.48 m 304.8 mm	Zippable	Thermoplastic Elastomer (TPE)	0.64 mm	0.025 in	50 ft	15.24 m	150 V	100	Gray	-40 C	105 ░C	0.64 mm	0.025 in	Solid	Flat Cable	30 AWG	Unshielded
3M Electronic Specialty 3749/80R	Blue	10 GOhm	Copper Tinned	50.8 mm	2 in	100 '	30.48 m	Zippable	Thermoplastic Elastomer (TPE)	0.64 mm	0.025 in			150 V	80	Gray	-40 C	105 ░C	0.64 mm	0.025 in	Solid	Flat Cable	30 AWG	Unshielded
3M Electronic Specialty 3749/12 100	Blue	10 GOhm	Copper Tinned	7.62 mm	0.3 in	1 ft 10 ft 25 ft 100 '	3.05 m 7.62 m 30.48 m 304.8 mm	Zippable	Thermoplastic Elastomer (TPE)	0.64 mm	0.025 in	50 ft	15.24 m	150 V	12	Gray	-40 C	105 ░C	0.64 mm	0.025 in	Solid	Flat Cable	30 AWG	Unshielded
3M Electronic Specialty 3749/68 100	Blue	10 GOhm	Copper Tinned	43.18 mm	1.7 in	100 '	30.48 m	Zippable	Thermoplastic Elastomer (TPE)	0.64 mm	0.025 in			150 V	68	Gray	-40 C	105 ░C	0.64 mm	0.025 in	Solid	Flat Cable	30 AWG	Unshielded
3M Electronic Specialty 3749/26 300	Blue	10 GOhm	Copper Tinned	16.51 mm	0.65 in	3600 in	91440 mm	Zippable	Thermoplastic Elastomer (TPE)	0.64 mm	0.025 in			150 V	26	Gray	-40 C	105 ░C	0.64 mm	0.025 in	Solid	Flat Cable	30 AWG	Unshielded
3M Electronic Specialty 3749/16	Blue	10 GOhm	Copper Tinned	10.2 mm	0.402 in	100 '	30.48 m	Zippable	Thermoplastic Elastomer (TPE)	0.64 mm	0.025 in			150 V	16 154	Gray	-40 C	105 ░C	0.64 mm	0.025 in	Solid	Flat Cable	30 AWG	Unshielded	Enter Number of Feet in Order Quantity
3M Electronic Specialty 3749/80 100	Blue	10 GOhm	Copper Tinned	50.8 mm	2 in	100 '	30.48 m	Zippable	Thermoplastic Elastomer (TPE)	0.64 mm	0.025 in			150 V	80	Gray	-40 C	105 ░C	0.64 mm	0.025 in	Solid	Flat Cable	30 AWG	Unshielded
3M Electronic Specialty 3749/14 100	Blue	10 GOhm	Copper Tinned	8.89 mm	0.35 in	1 ft 10 ft 25 ft 100 '	3.05 m 7.62 m 30.48 m 304.8 mm	Zippable	Thermoplastic Elastomer (TPE)	0.64 mm	0.025 in	50 ft	15.24 m	150 V	14	Gray	-40 C	105 ░C	0.64 mm	0.025 in	Solid	Flat Cable	30 AWG	Unshielded	Enter Number of Feet in Order Quantity
3M Electronic Specialty 3749/20 300	Blue	10 GOhm	Copper Tinned	12.7 mm	0.5 in	3600 in	91440 mm	Zippable	Thermoplastic Elastomer (TPE)	0.64 mm	0.025 in			150 V	20	Gray	-40 C	105 ░C	0.64 mm	0.025 in	Solid	Flat Cable	30 AWG	Unshielded	Enter Number of Feet in Order Quantity
