MP2-S120 Series

Catalog

CONN RCP FUTUREBUS+ 120P EDGE MT

Part	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Pitch [x]	Pitch [x]	Connector Style	Number of Positions Loaded	Number of Positions	Contact Finish	Connector Type	Color	Termination	Features	Number of Rows	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Connector Usage
3M Electronic Specialty MP2-S120-51M1-C-TR30	UL94 V-0	-55 C	125 °C	1.5 A	0.079 in	2 mm	Futurebus+®	All	120	Gold	Receptacle Female Sockets	Beige	Solder	Board Guide Board Lock Spacer	5	Board Edge Right Angle Through Hole	3 µin	0.076 Ám	Backplane
3M Electronic Specialty MP2-S120-51M1-C-TG30	UL94 V-0	-55 C	125 °C	1.5 A	0.079 in	2 mm	Futurebus+®	All	120	Gold	Receptacle Female Sockets	Beige	Solder	Board Guide Board Lock Spacer	5	Board Edge Right Angle Through Hole	30 Áin	0.76 Ám	Backplane
3M Electronic Specialty MP2-S120-51M2-C-LR	UL94 V-0	-55 C	125 °C	1.5 A	0.079 in	2 mm		All	120	Gold	Receptacle Female Sockets	Beige	Solder	Board Guide Guide Pin Mating Guide Spacer Stackable	5	Right Angle Through Hole	3 µin	0.076 Ám

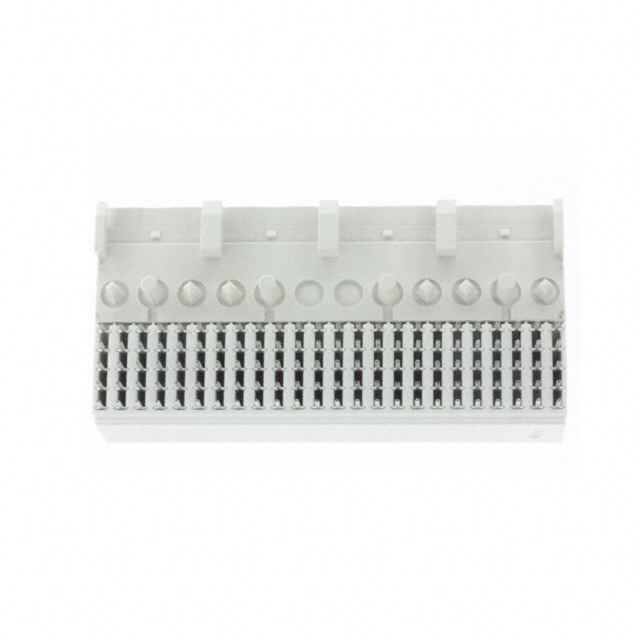

3M Electronic Specialty MP2-S120-51M1-C-LR	UL94 V-0	-55 C	125 °C	1.5 A	0.079 in	2 mm	Futurebus+®	All	120	Gold	Receptacle Female Sockets	Beige	Solder	Board Guide Board Lock Spacer	5	Board Edge Right Angle Through Hole	3 µin	0.076 Ám	Backplane
