3020-40 Series
Manufacturer: CNC Tech
Beta
⌘K

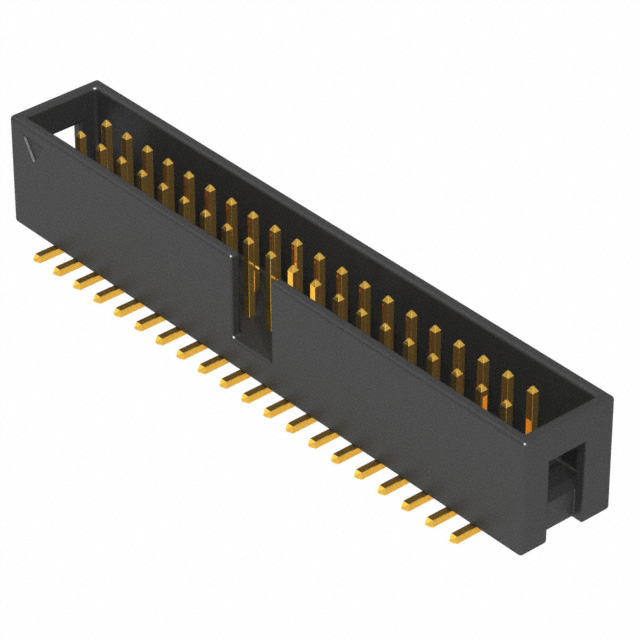

CONN HEADER SMD 40POS 2.54MM
| Part | Contact Finish Thickness - Post | Insulation Height | Insulation Height | Number of Positions Loaded | Current Rating (Amps) | Shrouding | Insulation Material | Termination | Connector Type | Number of Positions | Pitch - Mating | Pitch - Mating | Contact Type | Contact Finish - Post | Contact Finish - Mating | Number of Rows [custom] | Fastening Type | Contact Shape | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Mounting Type | Insulation Color | Material Flammability Rating | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Style | Features | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Length - Post | Contact Length - Post | Insulation Height | Insulation Height [z] | Insulation Height [z] | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CNC Tech | Flash | 0.354 in | 9 mm | All | 3 A | Shrouded - 4 Wall | Nylon 9T Polyamide (PA9T) | Solder | Header | 40 | 0.1 " | 2.54 mm | Male Pin | Gold | Gold | 2 | Push-Pull | Square | -40 C | 105 ░C | Brass | Surface Mount | Black | UL94 V-0 | 0.1 in | 2.54 mm | Board to Cable/Wire | Keying Slot | Flash | ||||||||
 CNC Tech | 0.35 in | All | 3 A | Shrouded - 4 Wall | Nylon 6T Polyamide (PA6T) | Solder | Header | 40 | 0.1 " | 2.54 mm | Male Pin | Gold | 2 | Push-Pull | Square | -40 C | 105 ░C | Brass | Right Angle Through Hole | UL94 V-0 | 0.1 in | 2.54 mm | Board to Cable/Wire | 0.76 Ám | 30 Áin | 0.118 in | 3 mm | 8.89 mm | |||||||||
 CNC Tech | Flash | All | 3 A | Shrouded - 4 Wall | Nylon 9T Polyamide (PA9T) | Solder | Header | 40 | 0.1 " | 2.54 mm | Male Pin | Gold | Gold | 2 | Push-Pull | Square | -40 C | 105 ░C | Brass | Right Angle Through Hole | Black | UL94 V-0 | 0.1 in | 2.54 mm | Board to Cable/Wire | Keying Slot | Flash | 0.118 in | 3 mm | 8.8 mm | 0.346 in | 250 VAC | |||||

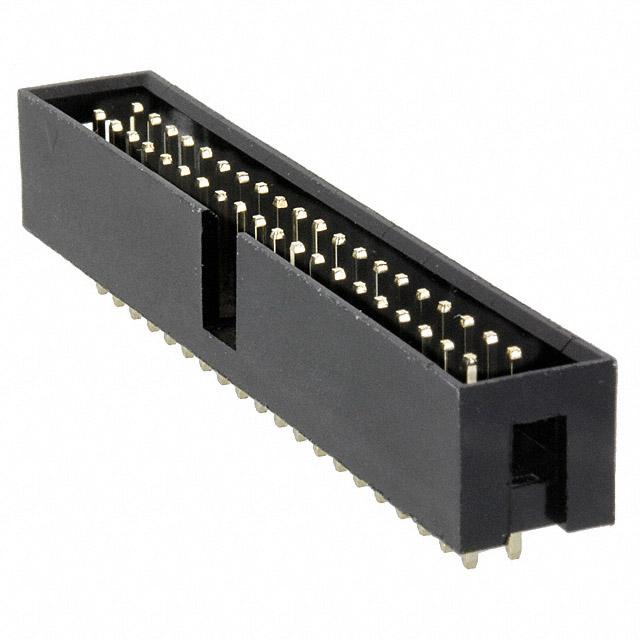

 CNC Tech | Flash | 0.354 in | 9 mm | All | 3 A | Shrouded - 4 Wall | Nylon 9T Polyamide (PA9T) | Solder | Header | 40 | 0.1 " | 2.54 mm | Male Pin | Gold | Gold | 2 | Push-Pull | Square | -40 C | 105 ░C | Brass | Through Hole | Black | UL94 V-0 | 0.1 in | 2.54 mm | Board to Cable/Wire | Keying Slot | Flash | 0.118 in | 3 mm | 250 VAC | |||||
 CNC Tech | Flash | 0.354 in | 9 mm | All | 3 A | Shrouded - 4 Wall | Nylon 9T Polyamide (PA9T) | Solder | Header | 40 | 0.1 " | 2.54 mm | Male Pin | Gold | Gold | 2 | Push-Pull | Square | -40 C | 105 ░C | Copper Alloy | Surface Mount | Black | UL94 V-0 | 0.1 in | 2.54 mm | Board to Cable/Wire | Keying Slot Pick and Place | Flash |
