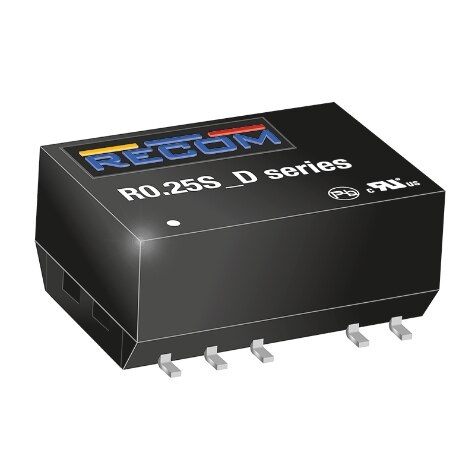

R0.25DA Series

Catalog

ISOLATED DC/DC CONVERTERS - SMD CONV DC/DC 0.25W 3.3VIN 05/05VOUT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Voltage - Input (Max) [Max]	Efficiency [Max]	Efficiency [Min]	Voltage - Input (Min) [Min]	Voltage - Isolation	Type	Voltage - Output 1	Power (Watts)	Current - Output (Max)	Features	Package / Case	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Applications	Mounting Type	Voltage - Output 2	Current - Output (Max) [Max]
Recom Power R0.25DA-3.30505/P	-40 C	100 °C	2	3.6 V	70 %	60 %	3 V	1000 V	Isolated Module	5 V	0.25 W	25 mA	SCP	10-SMD Module	7 mm	0.42 "	10.7 mm	0.6 "	0.28 "	15.2 mm	ITE (Commercial)	Surface Mount	5 V
Recom Power R0.25DA-240505-R	-40 C	100 °C	2	26.4 V	70 %	60 %	21.6 V	1000 V	Isolated Module	5 V	0.25 W	25 mA	SCP	10-SMD Module	7 mm	0.42 "	10.7 mm	0.6 "	0.28 "	15.2 mm	ITE (Commercial)	Surface Mount	5 V
Recom Power R0.25DA-3.31212	-40 C	100 °C	2	3.6 V	70 %	60 %	3 V	1000 V	Isolated Module	12 V	0.25 W		SCP	10-SMD Module	7 mm	0.42 "	10.7 mm	0.6 "	0.28 "	15.2 mm	ITE (Commercial)	Surface Mount	12 V	10 mA
Recom Power R0.25DA-150505	-40 C	100 °C	2	16.5 V	70 %	60 %	13.5 V	1000 V	Isolated Module	5 V	0.25 W	25 mA	SCP	10-SMD Module	7 mm	0.42 "	10.7 mm	0.6 "	0.28 "	15.2 mm	ITE (Commercial)	Surface Mount	5 V
Recom Power R0.25DA-120505	-40 C	100 °C	2	13.2 V	70 %	60 %	10.8 V	1000 V	Isolated Module	5 V	0.25 W	25 mA	SCP	10-SMD Module	7 mm	0.42 "	10.7 mm	0.6 "	0.28 "	15.2 mm	ITE (Commercial)	Surface Mount	5 V
Recom Power R0.25DA-241212-R	-40 C	100 °C	2	26.4 V	70 %	60 %	21.6 V	1000 V	Isolated Module	12 V	0.25 W		SCP	10-SMD Module	7 mm	0.42 "	10.7 mm	0.6 "	0.28 "	15.2 mm	ITE (Commercial)	Surface Mount	12 V	10 mA
Recom Power R0.25DA-241212/P-R	-40 C	100 °C	2	26.4 V	70 %	60 %	21.6 V	1000 V	Isolated Module	12 V	0.25 W		SCP	10-SMD Module	7 mm	0.42 "	10.7 mm	0.6 "	0.28 "	15.2 mm	ITE (Commercial)	Surface Mount	12 V	10 mA
Recom Power R0.25DA-151212	-40 C	100 °C	2	16.5 V	70 %	60 %	13.5 V	1000 V	Isolated Module	12 V	0.25 W		SCP	10-SMD Module	7 mm	0.42 "	10.7 mm	0.6 "	0.28 "	15.2 mm	ITE (Commercial)	Surface Mount	12 V	10 mA
Recom Power R0.25DA-3.30505	-40 C	100 °C	2	3.6 V	70 %	60 %	3 V	1000 V	Isolated Module	5 V	0.25 W	25 mA	SCP	10-SMD Module	7 mm	0.42 "	10.7 mm	0.6 "	0.28 "	15.2 mm	ITE (Commercial)	Surface Mount	5 V
Recom Power R0.25DA-3.30505-R	-40 C	100 °C	2	3.6 V	70 %	60 %	3 V	1000 V	Isolated Module	5 V	0.25 W	25 mA	SCP	10-SMD Module	7 mm	0.42 "	10.7 mm	0.6 "	0.28 "	15.2 mm	ITE (Commercial)	Surface Mount	5 V
