151250 Series

Catalog

PIN HEADER, PIN HEADER, WIRE-TO-BOARD, 2 MM, 2 ROWS, 50 CONTACTS, THROUGH HOLE RIGHT ANGLE

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Contact Material	Number of Positions	Style	Row Spacing - Mating	Row Spacing - Mating	Termination	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Shape	Shrouding	Mounting Type	Number of Rows [custom]	Number of Positions Loaded	Contact Type	Insulation Color	Insulation Height	Insulation Height	Fastening Type	Contact Finish - Post	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Overall Contact Length	Overall Contact Length	Insulation Height [z]	Insulation Height [z]
3M Electronic Specialty 151250-7422-RB	200 µin	5.08 µm	Gold	Copper Alloy	50	Board to Board Cable	2 mm	0.079 in	Solder	0.079 "	2 mm	0.118 in	3 mm	-55 C	105 ░C	Header	Square	Unshrouded	Right Angle Through Hole	2	All	Male Pin	Black	0.165 in	4.2 mm	Push-Pull	Tin	UL94 V-0	3.86 mm	0.152 in	0.76 Ám	30 Áin
3M Electronic Specialty 151250-8322-TB	200 µin	5.08 µm	Gold	Copper Alloy	50	Board to Board Cable	2 mm	0.079 in	Solder	0.079 "	2 mm	0.118 in	3 mm	-55 C	105 ░C	Header	Square	Unshrouded	Through Hole	2	All	Male Pin	Black			Push-Pull	Tin-Lead	UL94 V-0	3.3 mm	0.13 in	0.76 Ám	30 Áin	7.8 mm	0.307 in	0.06 in	1.52 mm

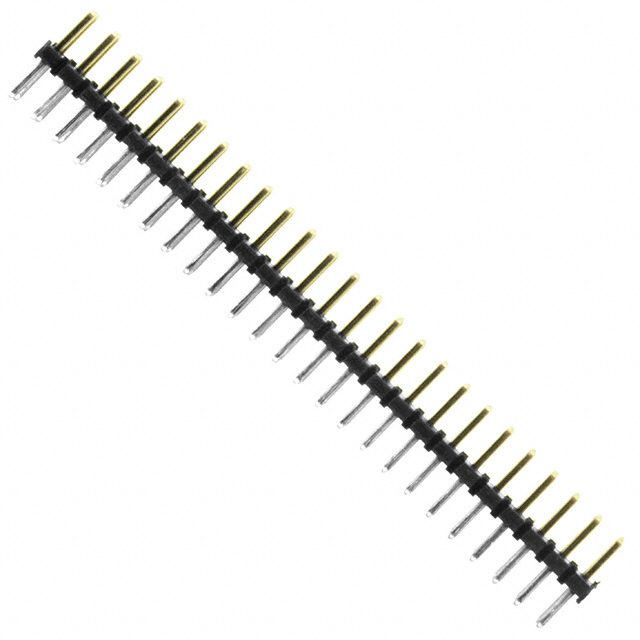

3M Electronic Specialty 151250-8322-RB	200 µin	5.08 µm	Gold	Copper Alloy	50	Board to Board Cable	2 mm	0.079 in	Solder	0.079 "	2 mm	0.118 in	3 mm	-55 C	105 ░C	Header	Square	Unshrouded	Through Hole	2	All	Male Pin	Black			Push-Pull	Tin	UL94 V-0	3.3 mm	0.13 in	0.76 Ám	30 Áin	7.8 mm	0.307 in	0.06 in	1.52 mm
