RXM4G Series
Manufacturer: SCHNEIDER ELECTRIC
Beta
⌘K

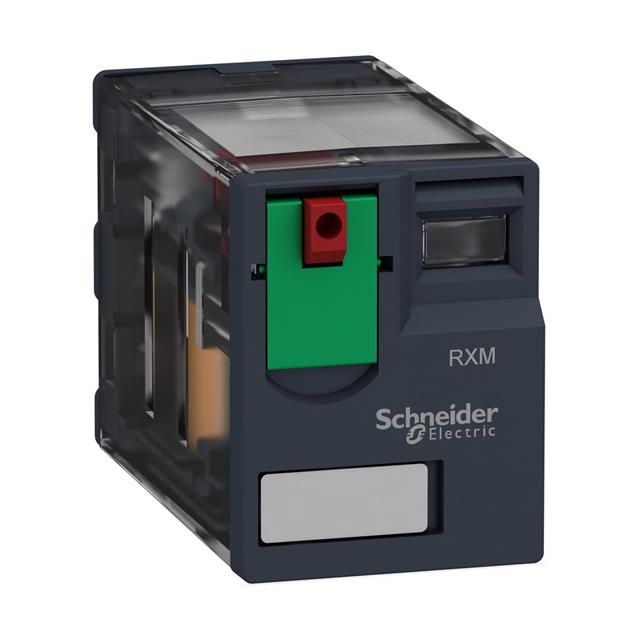

POWER RELAY, 4PDT, 230 VAC, 2 A, ZELIO RXM SERIES, SOCKET
| Part | Coil Resistance | Operate Time | Coil Voltage | Must Operate Voltage | Must Release Voltage | Contact Form | Termination Style | Features | Release Time | Coil Type | Contact Material | Relay Type | Approval Agency | Load - Max Switching | Operating Temperature [Max] | Operating Temperature [Min] | Contact Rating (Current) | Coil Current | Switching Voltage [Max] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHNEIDER ELECTRIC | 15 kOhms | 20 ms | 230 VAC | 184 VAC | 34.5 VAC | 4PDT (4 Form C) | Plug In | Lighted Indicator Test Button | 20 ms | Non Latching | Gold (Au) Silver (Ag) | General Purpose | CE CSA GOST IECEE Lloyd's UL | 84 W 750 VA | 55 °C | -40 C | 3 A | 15.3 mA | 28 VDC 250 VAC | Socketable |
 SCHNEIDER ELECTRIC | 650 Ohms | 20 ms | 24 VDC | 19.2 VDC | 2.4 VDC | 4PDT (4 Form C) | Plug In | Test Button | 20 ms | Non Latching | Gold (Au) Silver (Ag) | General Purpose | CE CSA GOST IECEE Lloyd's UL | 84 W 750 VA | 55 °C | -40 C | 3 A | 36.9 mA | 28 VDC 250 VAC | Socketable |
 SCHNEIDER ELECTRIC | 160 Ohms | 20 ms | 12 VDC | 9.6 VDC | 1.2 VDC | 4PDT (4 Form C) | Plug In | Lighted Indicator Test Button | 20 ms | Non Latching | Gold (Au) Silver (Ag) | General Purpose | CE CSA GOST IECEE Lloyd's UL | 84 W 750 VA | 55 °C | -40 C | 3 A | 0.075 A | 28 VDC 250 VAC | Socketable |
 SCHNEIDER ELECTRIC | 710 Ohms | 20 ms | 48 VAC | 38.4 VAC | 7.2 VAC | 4PDT (4 Form C) | Plug In | Test Button | 20 ms | Non Latching | Gold (Au) Silver (Ag) | General Purpose | CE CSA GOST IECEE Lloyd's UL | 84 W 750 VA | 55 °C | -40 C | 3 A | 67.6 mA | 28 VDC 250 VAC | Socketable |
SCHNEIDER ELECTRIC | 17.72 kOhms | 20 ms | 240 VAC/DC | 192 VAC | 36 VAC | 4PDT (4 Form C) | Plug In | Lighted Indicator Test Button | 20 ms | Non Latching | Gold (Au) Silver (Ag) | General Purpose | CE CSA GOST IECEE Lloyd's UL | 84 W 750 VA | 55 °C | -40 C | 3 A | 13.5 mA | 28 VDC 250 VAC | Socketable |
 SCHNEIDER ELECTRIC | 160 Ohms | 20 ms | 12 VDC | 9.6 VDC | 1.2 VDC | 4PDT (4 Form C) | Plug In | Test Button | 20 ms | Non Latching | Gold (Au) Silver (Ag) | General Purpose | CE CSA GOST IECEE Lloyd's UL | 84 W 750 VA | 55 °C | -40 C | 3 A | 0.075 A | 28 VDC 250 VAC | Socketable |
 SCHNEIDER ELECTRIC | 710 Ohms | 20 ms | 48 VAC | 38.4 VAC | 7.2 VAC | 4PDT (4 Form C) | Plug In | Lighted Indicator Test Button | 20 ms | Non Latching | Gold (Au) Silver (Ag) | General Purpose | CE CSA GOST IECEE Lloyd's UL | 84 W 750 VA | 55 °C | -40 C | 3 A | 67.6 mA | 28 VDC 250 VAC | Socketable |
 SCHNEIDER ELECTRIC | 3.63 kOhms | 20 ms | 120 VAC | 96 VAC | 18 VAC | 4PDT (4 Form C) | Plug In | Lighted Indicator | 20 ms | Non Latching | Gold (Au) Silver (Ag) | General Purpose | CE CSA GOST IECEE Lloyd's UL | 84 W 750 VA | 55 °C | -40 C | 3 A | 28 VDC 250 VAC | Socketable | |
 SCHNEIDER ELECTRIC | 15 kOhms | 20 ms | 230 VAC | 184 VAC | 34.5 VAC | 4PDT (4 Form C) | Plug In | Test Button | 20 ms | Non Latching | Gold (Au) Silver (Ag) | General Purpose | CE CSA GOST IECEE Lloyd's UL | 84 W 750 VA | 55 °C | -40 C | 3 A | 15.3 mA | 28 VDC 250 VAC | Socketable |
SCHNEIDER ELECTRIC | 13.44 kOhms | 20 ms | 110 VDC | 88 VDC | 11 VDC | 4PDT (4 Form C) | Plug In | Lighted Indicator | 20 ms | Non Latching | Gold (Au) Silver (Ag) | General Purpose | CE CSA GOST IECEE Lloyd's UL | 84 W 750 VA | 55 °C | -40 C | 3 A | 8.2 mA | 28 VDC 250 VAC | Socketable |
