160479 Series

Catalog

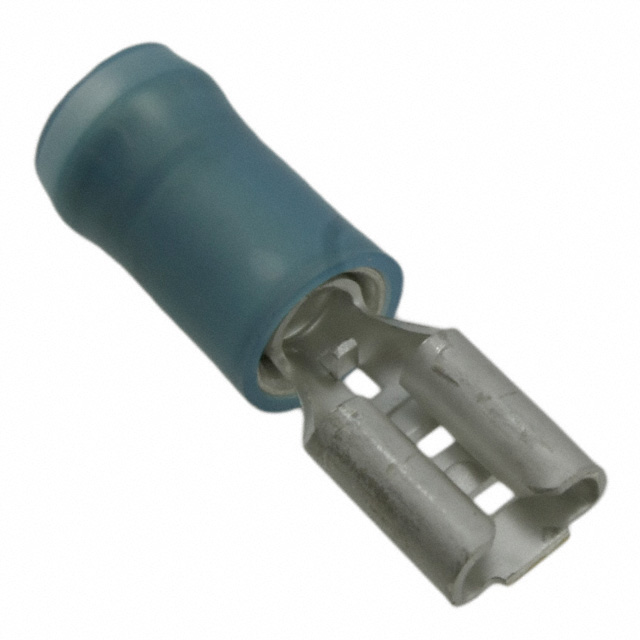

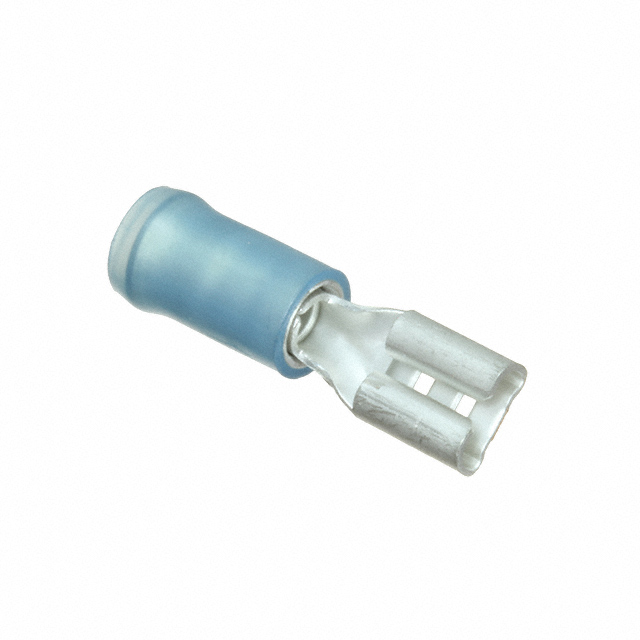

PIDG QUICK DISCONNECT TERMINAL 14-16AWG BRASS BLUE F 21.89MM TIN LOOSE

Part	Length - Overall [x]	Length - Overall [x]	Color	Contact Material	Tab Width [x]	Tab Width [x]	Tab Length	Tab Length	Tab Thickness	Tab Thickness	Insulation	Contact Finish	Wire Gauge [Min]	Wire Gauge [Max]	Mounting Type	Terminal Type	Gender	Termination
TE Connectivity AMP Connectors 9-160479-2	0.862 in	21.9 mm	Blue	Brass	0.187 in	4.75 mm	0.25 in	6.35 mm	0.81 mm	0.032 in	Non-Mating End Insulated	Tin	14 AWG	16 AWG	Free Hanging (In-Line)	Standard	Female	Crimp
TE Connectivity AMP Connectors 5-160479-2	0.862 in	21.9 mm	Blue	Brass	0.187 in	4.75 mm	0.25 in	6.35 mm	0.79 mm	0.031 in	Non-Mating End Insulated	Tin	14 AWG	16 AWG	Free Hanging (In-Line)	Standard	Female	Crimp
TE Connectivity AMP Connectors 9-160479-2
TE Connectivity AMP Connectors 9-160479-5	0.862 in	21.9 mm	Blue	Phosphor Bronze	0.187 in	4.75 mm	0.25 in	6.35 mm	0.81 mm	0.032 in	Non-Mating End Insulated	Tin	14 AWG	16 AWG	Free Hanging (In-Line)	Standard	Female	Crimp
