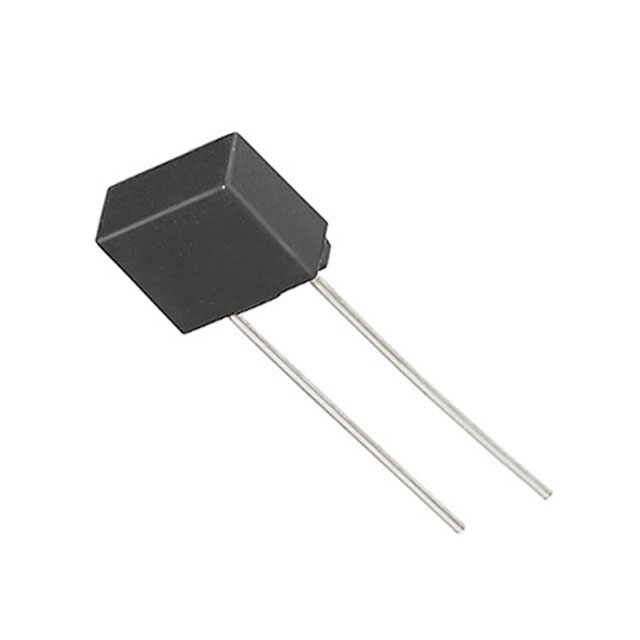

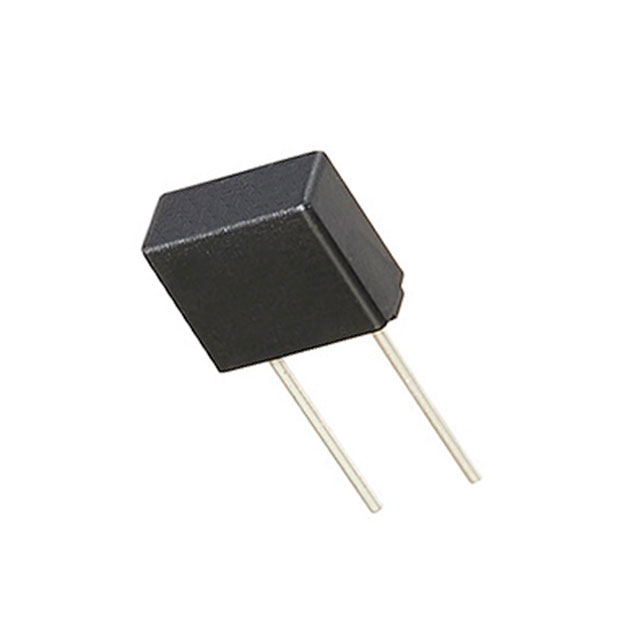

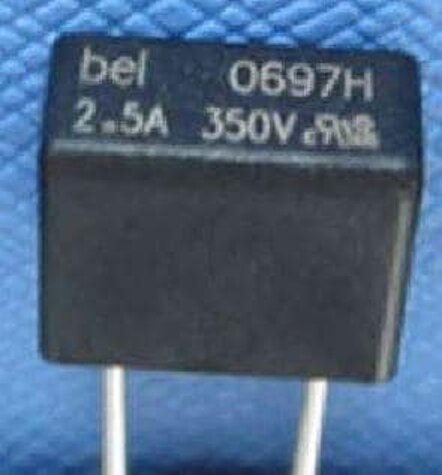

0697H Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K
FUSES WITH LEADS - THROUGH HOLE 10A 350V
| Part | DC Cold Resistance | Fuse Type | Approval Agency | Response Time | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Package / Case | Melting I²t | Current Rating (Amps) | Mounting Type | Voltage Rating - DC | Voltage Rating - AC | Breaking Capacity @ Rated Voltage | Melting I˛t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bel Fuse Inc. | 0.0055 Ohms | Board Mount (Cartridge Style Excluded) | AEC-Q200 cURus | Slow Blow | -55 C | 125 °C | 0.307 inches | 4 mm | 0.157 " | 0.329 " | 8.35 mm | 7.8 mm | Box Radial | 370 I²t | 10 A | Through Hole | 72 V | 350 V | ||
 Bel Fuse Inc. | Board Mount (Cartridge Style Excluded) | AEC-Q200 cURus | Slow Blow | -55 C | 125 °C | 0.307 inches | 4 mm | 0.157 " | 0.329 " | 8.35 mm | 7.8 mm | Box Radial | 0.27 I²t | 0.315 A | Through Hole | 100 V | 350 V | 65 A 100 A | ||
 Bel Fuse Inc. | Board Mount (Cartridge Style Excluded) | AEC-Q200 cURus | Slow Blow | -55 C | 125 °C | 0.307 inches | 4 mm | 0.157 " | 0.329 " | 8.35 mm | 7.8 mm | Box Radial | 0.18 | 0.25 A | Through Hole | 100 V | 350 V | 65 A 100 A | ||
Bel Fuse Inc. | Board Mount (Cartridge Style Excluded) | AEC-Q200 cURus | Slow Blow | -55 C | 125 °C | 0.307 inches | 4 mm | 0.157 " | 0.329 " | 8.35 mm | 7.8 mm | Box Radial | 325 I²t | 8 A | Through Hole | 72 V | 350 V | |||
Bel Fuse Inc. | Board Mount (Cartridge Style Excluded) | AEC-Q200 cURus | Slow Blow | -55 C | 125 °C | 0.307 inches | 4 mm | 0.157 " | 0.329 " | 8.35 mm | 7.8 mm | Box Radial | 6.1 | 1 A | Through Hole | 100 V | 350 V | 65 A 100 A | ||
Bel Fuse Inc. | Board Mount (Cartridge Style Excluded) | AEC-Q200 cURus | Slow Blow | -55 C | 125 °C | 0.307 inches | 4 mm | 0.157 " | 0.329 " | 8.35 mm | 7.8 mm | Box Radial | 130 | 5 A | Through Hole | 72 V | 350 V | |||
 Bel Fuse Inc. | Board Mount (Cartridge Style Excluded) | AEC-Q200 cURus | Slow Blow | -55 C | 125 °C | 0.307 inches | 4 mm | 0.157 " | 0.329 " | 8.35 mm | 7.8 mm | Box Radial | 370 I²t | 10 A | Through Hole | 72 V | 350 V | |||
 Bel Fuse Inc. | 190 mOhms | Board Mount (Cartridge Style Excluded) | AEC-Q200 cURus | Slow Blow | -55 C | 125 °C | 0.307 inches | 4 mm | 0.157 " | 0.329 " | 8.35 mm | 7.8 mm | Box Radial | 1.5 I²t | 0.63 A | Through Hole | 100 V | 350 V | 65 A 100 A | 1.5 I˛t |
Bel Fuse Inc. | 0.01 Ohms | Board Mount (Cartridge Style Excluded) | AEC-Q200 cURus | Slow Blow | -55 C | 125 °C | 0.307 inches | 4 mm | 0.157 " | 0.329 " | 8.35 mm | 7.8 mm | Box Radial | 180 | 6.3 A | Through Hole | 72 V | 350 V | ||
 Bel Fuse Inc. | Board Mount (Cartridge Style Excluded) | AEC-Q200 cURus | Slow Blow | -55 C | 125 °C | 0.307 inches | 4 mm | 0.157 " | 0.329 " | 8.35 mm | 7.8 mm | Box Radial | 0.18 | 0.25 A | Through Hole | 100 V | 350 V | 65 A 100 A |
