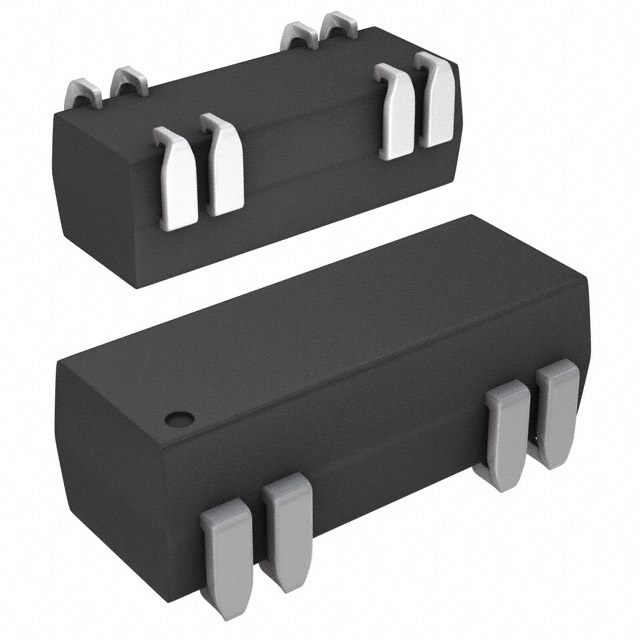

8L61 Series

Catalog

RELAY COTO STANDARD CD REV BOM/MFG NPR/NPR /TUBE

Part	Coil Resistance	Must Release Voltage	Must Operate Voltage	Switching Voltage	Mounting Type	Coil Voltage	Termination Style	Release Time	Coil Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Rating (Current)	Contact Form	Operate Time	Coil Current	Features
COTO TECHNOLOGY 8L61-12-001	500 Ohms	1 VDC	9.6 VDC	100 VAC 100 VDC	Surface Mount	12 VDC	J Lead	1 ms	Non Latching	85 °C	-20 ░C	250 mA	SPDT (1 Form C)	1 ms	24 mA
COTO TECHNOLOGY 8L61-12-101	500 Ohms	1 VDC	9.6 VDC	100 VAC 100 VDC	Surface Mount	12 VDC	J Lead	1 ms	Non Latching	85 °C	-20 ░C	250 mA	SPDT (1 Form C)	1 ms	24 mA	Electrostatic Shield
COTO TECHNOLOGY 8L61-05-011	200 Ohms	0.5 VDC	3.8 VDC	100 VAC 100 VDC	Surface Mount	5 VDC	J Lead	1 ms	Non Latching	85 °C	-20 ░C	250 mA	SPDT (1 Form C)	1 ms	25 mA	Diode
COTO TECHNOLOGY 8L61-12-011	500 Ohms	1 VDC	9.6 VDC	100 VAC 100 VDC	Surface Mount	12 VDC	J Lead	1 ms	Non Latching	85 °C	-20 ░C	250 mA	SPDT (1 Form C)	1 ms	24 mA	Diode
COTO TECHNOLOGY 8L61-05-001	200 Ohms	0.5 VDC	3.8 VDC	100 VAC 100 VDC	Surface Mount	5 VDC	J Lead	1 ms	Non Latching	85 °C	-20 ░C	250 mA	SPDT (1 Form C)	1 ms	25 mA
COTO TECHNOLOGY 8L61-05-101	200 Ohms	0.5 VDC	3.8 VDC	100 VAC 100 VDC	Surface Mount	5 VDC	J Lead	1 ms	Non Latching	85 °C	-20 ░C	250 mA	SPDT (1 Form C)	1 ms	25 mA	Electrostatic Shield
COTO TECHNOLOGY 8L61-05-111	200 Ohms	0.5 VDC	3.8 VDC	100 VAC 100 VDC	Surface Mount	5 VDC	J Lead	1 ms	Non Latching	85 °C	-20 ░C	250 mA	SPDT (1 Form C)	1 ms	25 mA	Diode Electrostatic Shield
COTO TECHNOLOGY 8L61-12-111	500 Ohms	1 VDC	9.6 VDC	100 VAC 100 VDC	Surface Mount	12 VDC	J Lead	1 ms	Non Latching	85 °C	-20 ░C	250 mA	SPDT (1 Form C)	1 ms	24 mA	Diode Electrostatic Shield
