R14126 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

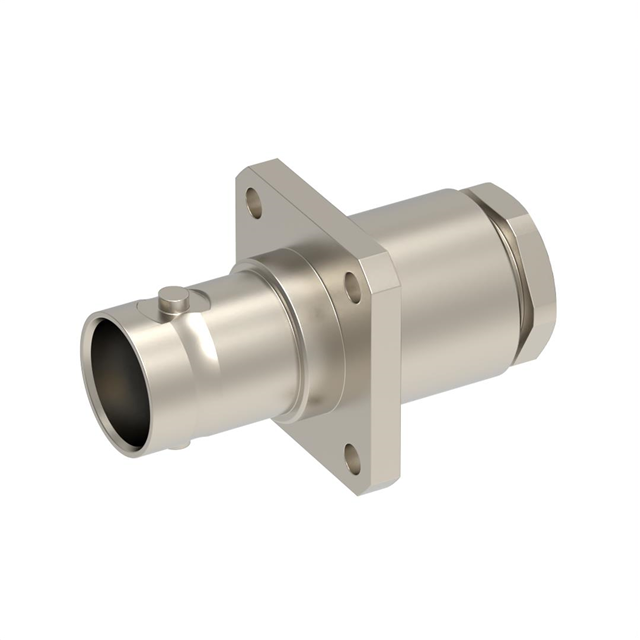

BNC / STRAIGHT SQUARE FLANGE JAC
| Part | Mating Cycles | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Body Material | Voltage Rating | Body Finish | Mounting Feature | Frequency - Max [Max] | Center Contact Material | Fastening Type | Cable Group | Cable Group | Mounting Type | Connector Type | Shield Termination | Connector Style | Impedance | Housing Color | Number of Ports | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 500 | Gold | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Brass | 500 V | Nickel | Flange | 4 GHz | Beryllium Copper | Bayonet Lock | RG-58 | 141 | Panel Mount | Female Socket Jack | Clamp | BNC | 50 Ohms | Silver | 1 | Solder |
