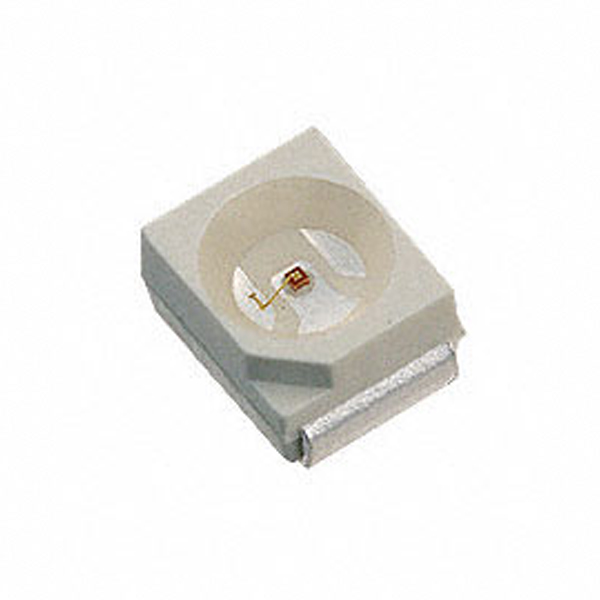

SML-LX2832 Series

Manufacturer: Lumex Opto/Components Inc.

Catalog

LED GRN/YLW CLEAR 2832 SMD

Part	Configuration	Height (Max) [z]	Lens Size [diameter]	Size / Dimension [y]	Size / Dimension [x]	Color	Wavelength - Peak	Voltage - Forward (Vf) (Typ)	Package / Case	Lens Color	Current - Test	Lens Style	Millicandela Rating	Mounting Type	Viewing Angle	Supplier Device Package	Lens Transparency	Current - Test [custom]	Current - Test [custom]
Lumex Opto/Components Inc. SML-LX2832YGC-TR	Independent	2.1 mm	2.4 mm Dia	2.8 mm	3.2 mm	Green Yellow	565 nm 585 nm	2.1 V 2.2 V	2-PLCC	Colorless	20 mA 20 mA	Round with Flat Top	15 mcd 25 mcd	Surface Mount	120 °	2832	Clear
Lumex Opto/Components Inc. SML-LX2832IYC-TR	Independent	2.1 mm	2.4 mm Dia	2.8 mm	3.2 mm	Red Yellow	585 nm 635 nm	2 V 2.1 V	4-PLCC	Colorless	20 mA 20 mA	Round with Flat Top		Surface Mount	120 °	2832	Clear
Lumex Opto/Components Inc. SML-LX2832SOC-TR	Standard	2.1 mm	2.4 mm Dia	2.8 mm	3.2 mm		610 nm	2 V	2-PLCC	Colorless	20 mA	Round with Flat Top	300 mcd	Surface Mount	120 °	2832	Clear
Lumex Opto/Components Inc. SML-LX2832SRC/B-TR	Standard	2.1 mm	2.4 mm Dia	2.8 mm	3.2 mm	Red	660 nm	1.7 V	2-PLCC	Colorless	20 mA	Round with Flat Top	65 mcd	Surface Mount	120 °	2832	Clear
Lumex Opto/Components Inc. SML-LX2832UWC-TR	Standard	2.1 mm	2.4 mm Dia	2.8 mm	3.2 mm	White		3.3 V	2-PLCC	Colorless	20 mA	Round with Flat Top	690 mcd	Surface Mount	120 °	2832	Clear
Lumex Opto/Components Inc. SML-LX2832IC-TR	Standard	2.1 mm	2.4 mm Dia	2.8 mm	3.2 mm	Red	635 nm	2 V	2-PLCC	Colorless	20 mA	Round with Flat Top	25 mcd	Surface Mount	120 °	2832	Clear
Lumex Opto/Components Inc. SML-LX2832ZIC-TR	Independent	2.1 mm	2.4 mm Dia	2.8 mm	3.2 mm	Red	630 nm	2.4 V	2-PLCC	Colorless	20 mA	Round with Domed Top	800 mcd	Surface Mount	120 °	2832	Clear
Lumex Opto/Components Inc. SML-LX2832IGC-TR	Independent	2.1 mm	2.4 mm Dia	2.8 mm	3.2 mm	Green Red	565 nm 635 nm	2 V 2.2 V	4-PLCC	Colorless		Round with Flat Top	25 mcd 25 mcd	Surface Mount	120 °	2832	Clear	20 mA	20 mA
Lumex Opto/Components Inc. SML-LX2832GC-TR	Standard	2.1 mm	2.4 mm Dia	2.8 mm	3.2 mm	Green	565 nm	2.1 V	2-PLCC	Colorless	20 mA	Round with Flat Top	25 mcd	Surface Mount	120 °	2832	Clear
Lumex Opto/Components Inc. SML-LX2832SIC-TR	Standard	2.1 mm	2.4 mm Dia	2.8 mm	3.2 mm	Red	636 nm	2 V	2-PLCC	Colorless	20 mA	Round with Flat Top	250 mcd	Surface Mount	120 °	2832	Clear
