EM2-20 Series

Catalog

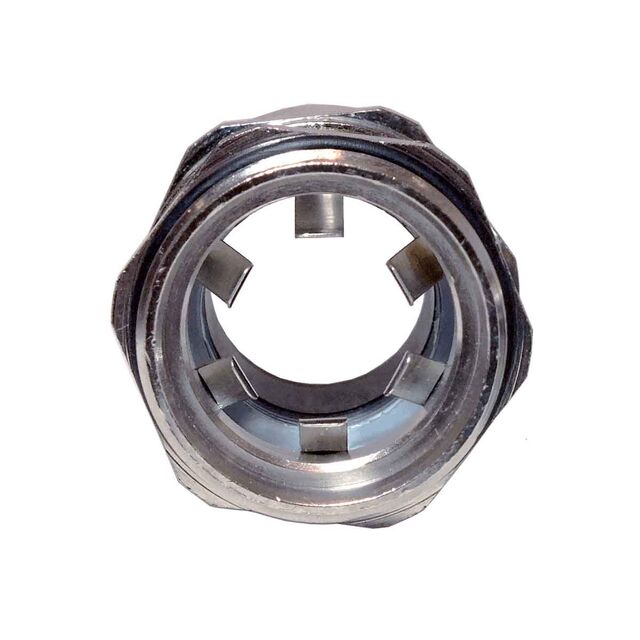

CABLE GLAND 6-12MM M20 BRASS

Part	Type	Panel Hole Size	Panel Hole Size	Operating Temperature [Min]	Operating Temperature [Max]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Color	Thread Size	Material	Ingress Protection	Thread Length	Thread Length	Includes
SAB North America EM2-20L	Cable Gland	20 mm	0.787 in	-20 ░C	100 °C	12 mm	0.472 in	6 mm	0.236 in	Silver	M20x1.5	Brass Nickel Plated	IP68 - Dust Tight Waterproof	12 mm	0.472 in	O-Ring
