GA200 Series

Catalog

SENSOR 1PSID 0.13" 4V

Part	Pressure Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Port Size	Port Size	Port Size	Maximum Pressure [Max]	Maximum Pressure [Max]	Output [Min]	Output [Max]	Output Type	Accuracy	Operating Pressure	Operating Pressure	Package / Case	Applications	Features	Port Style	Termination Style	Voltage - Supply [Min]	Voltage - Supply [Max]

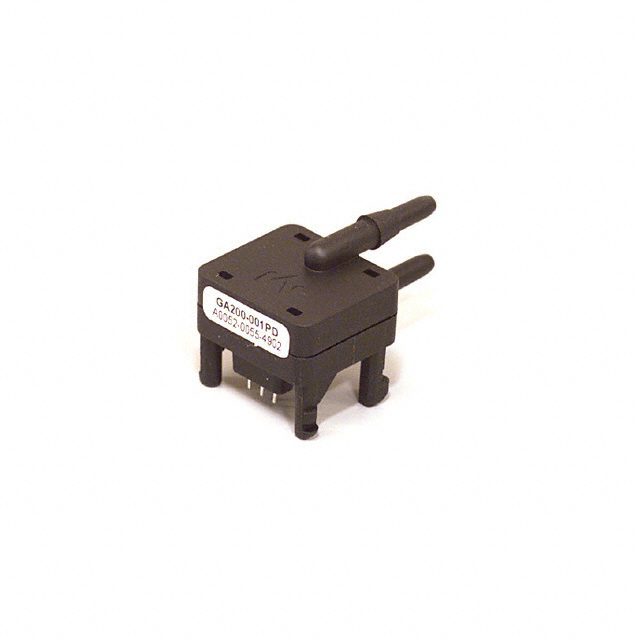

TE Connectivity AMP Connectors GA200-001PD	Differential	-25 °C	80 °C	Through Hole	3.23 mm	0.13 in	Dual Male Tube	10 PSI	68.95 kPa	0.25 V	4 V	Analog Voltage	1.5 %	6.89 kPa	1 PSI	3-SIP Module	Board Mount	Amplified Output Temperature Compensated	Barbed	PC Pin	4.75 V	5.25 V
