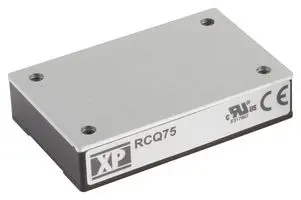

RCQ75110 Series
Manufacturer: XP Power
Beta
⌘K
ISOLATED THROUGH HOLE DC/DC CONVERTER, RAILWAY, 2:1, 75 W, 1 OUTPUT, 12 V, 6.25 A
| Part | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Voltage - Output 1 | Voltage - Input (Min) [Min] | Efficiency | Features | Number of Outputs | Voltage - Isolation | Package / Case | Voltage - Input (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Control Features | Power (Watts) | Type | Standard Number | Mounting Type | Current - Output (Max) [Max] | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 XP Power | 57.9 mm | 1.45 in | 0.5 in | 2.28 " | 12.7 mm | 36.8 mm | 12 V | 66 V | 91 % | Remote On/Off | 1 | 3000 V | 8-DIP Module | 160 V | -40 C | 35 °C | Active High Enable | 75 W | Isolated Module | 62368-1 | Through Hole | 6.25 A | ITE (Commercial) Railway |
 XP Power | 57.9 mm | 1.45 in | 0.5 in | 2.28 " | 12.7 mm | 36.8 mm | 5 V | 66 V | 89 % | Remote On/Off | 1 | 3000 V | 8-DIP Module | 160 V | -40 C | 35 °C | Active High Enable | 75 W | Isolated Module | 62368-1 | Through Hole | 15 A | ITE (Commercial) Railway |
