AYF532435 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K

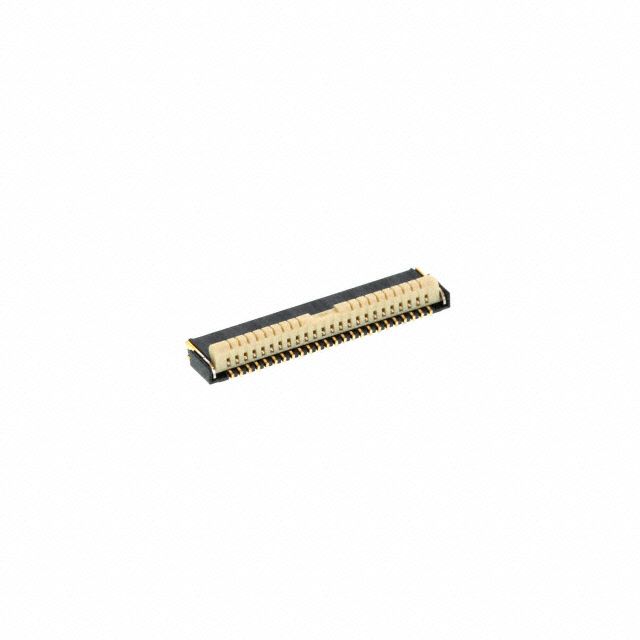

CONN FFC FPC 24POS 0.5MM R/A
| Part | Contact Finish Thickness | Mating Cycles | Current Rating (Amps) | Voltage Rating | Housing Material | FFC, FCB Thickness | Number of Positions | Height Above Board [z] | Height Above Board [z] | Cable End Type | Flat Flex Type | Connector/Contact Type | Contact Finish | Termination | Locking Feature | Actuator Material | Mounting Type | Contact Material | Pitch | Pitch | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | Flash | 20 | 500 mA | 50 V | Liquid Crystal Polymer (LCP) | 0.3 mm | 24 | 1 mm | 0.039 " | Tapered | FFC FPC | Contacts Top and Bottom | Gold | Solder | Backlock Flip Lock | Liquid Crystal Polymer (LCP) | Right Angle Surface Mount | Copper Alloy | 0.02 " | 0.5 mm | -55 C | 85 °C | UL94 V-0 |
