600V 3A TO-252, High-speed switching Power MOSFET
Description
AI
R6003KND3 is a power MOSFET with low on-resistance and fast switching, suitable for the switching application.
Beta
⌘K
600V 3A TO-252, High-speed switching Power MOSFET
600V 3A TO-252, High-speed switching Power MOSFET
| Part | Vgs(th) (Max) @ Id | Mounting Type | Gate Charge (Qg) (Max) @ Vgs [Max] | FET Type | Operating Temperature | Technology | Vgs (Max) | Power Dissipation (Max) | Drive Voltage (Max Rds On, Min Rds On) | Drain to Source Voltage (Vdss) | Rds On (Max) @ Id, Vgs | Supplier Device Package | Current - Continuous Drain (Id) @ 25°C | Package / Case | Input Capacitance (Ciss) (Max) @ Vds [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

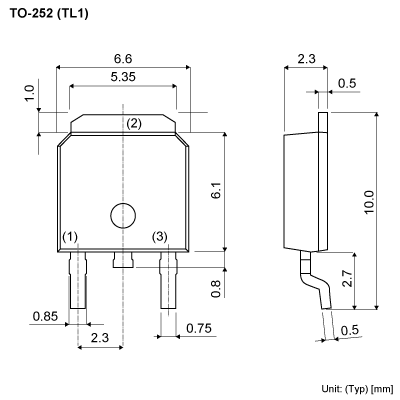

 Rohm Semiconductor | 5.5 V | Surface Mount | 8 nC | N-Channel | 150 °C | MOSFET (Metal Oxide) | 20 V | 44 W | 10 V | 600 V | 1.5 Ohm | TO-252 | 3 A | DPAK (2 Leads + Tab) SC-63 TO-252-3 | 185 pF |
