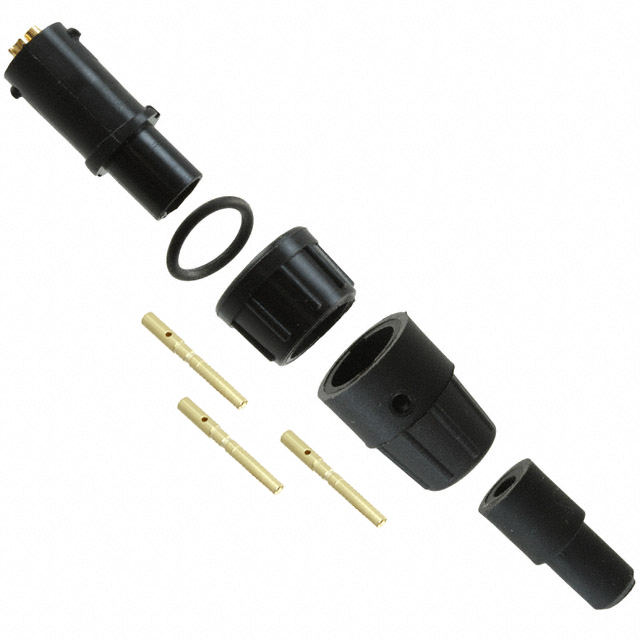

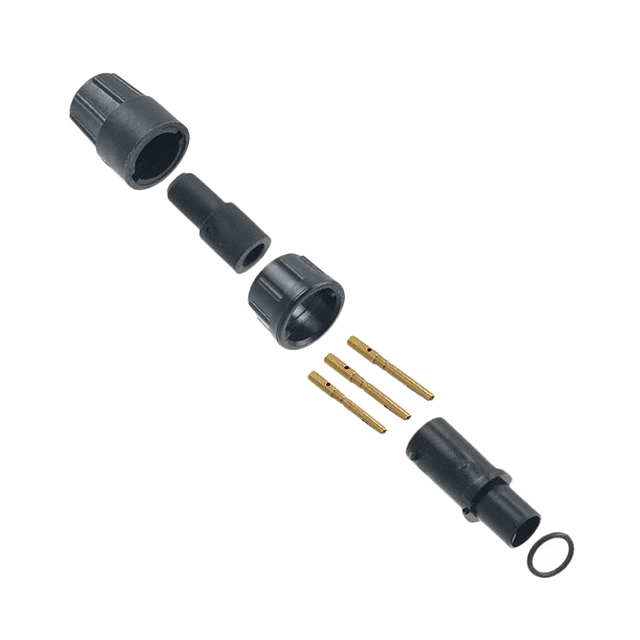

16280-3S Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K
CONN PLUG FMALE 3POS GOLD CRIMP
| Part | Contact Material | Ingress Protection | Applications | Current Rating (Amps) | Fastening Type | Backshell Material, Plating | Shielding | Features | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish - Mating | Material Flammability Rating | Connector Type | Color | Voltage Rating | Orientation | Termination | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Min] | Cable Opening [Max] | Primary Material | Mounting Type | Cable Opening [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | Copper Alloy | IP67 - Dust Tight Waterproof | Data Industrial Instrumentation Medical | 7.5 A | Bayonet Lock | Thermoplastic | Unshielded | Backshell | 85 °C | -40 C | Gold | UL94 HB | Plug Female Sockets | Black | 600 VAC | Keyed | Crimp | 0.14 in | 2.29 mm | 0.09 in | 3.56 mm | Plastic | Free Hanging (In-Line) | |
 SWITCHCRAFT/CONXALL | Copper Alloy | IP67 - Dust Tight Waterproof | Data Industrial Instrumentation Medical | 7.5 A | Bayonet Lock | Thermoplastic | Unshielded | Backshell | 85 °C | -40 C | Gold | UL94 HB | Plug Female Sockets | Black | 600 VAC | Keyed | Crimp | 0.17 in | 3.81 mm | 0.15 " | Plastic | Free Hanging (In-Line) | 4.32 mm | |
SWITCHCRAFT/CONXALL | Copper Alloy | IP67 - Dust Tight Waterproof | Data Industrial Instrumentation Medical | 7.5 A | Bayonet Lock | Thermoplastic | Unshielded | Backshell | 85 °C | -40 C | Gold | UL94 HB | Plug Female Sockets | Black | 600 VAC | Keyed | Crimp | 0.2 " | 4.57 mm | 0.18 " | Plastic | Free Hanging (In-Line) | 5.08 mm |
