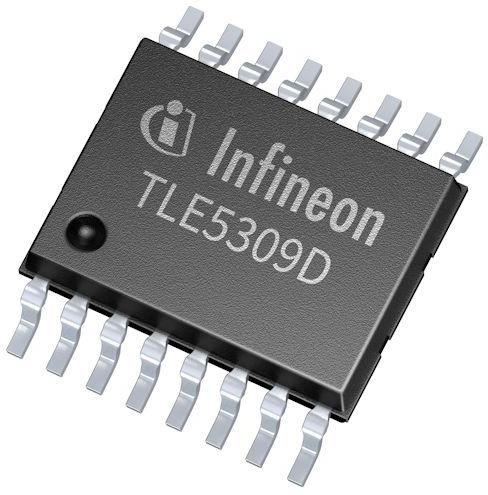

TLE5309 Series
Manufacturer: INFINEON
Beta
⌘K
ROTARY POSITION SENSOR 3.6V ANALOG OUTPUT 16-PIN TDSO T/R AUTOMOTIVE AEC-Q100
| Part | For Measuring | Technology | Rotation Angle - Electrical, Mechanical [Max] | Rotation Angle - Electrical, Mechanical [Min] | Termination Style | Voltage - Supply [Max] | Voltage - Supply [Min] | Grade | Package / Case | Supplier Device Package | Output Signal | Output | Qualification | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | Angle | Magnetoresistive | 360 ° | 0 ° | Gull Wing | 3.6 V 5.5 V | 3 V 4.5 V | Automotive | 16-TSSOP | PG-TDSO-16 | Cosine Sine | Analog Voltage | AEC-Q100 | Surface Mount | 125 °C | -40 °C | External Magnet Not Included |
