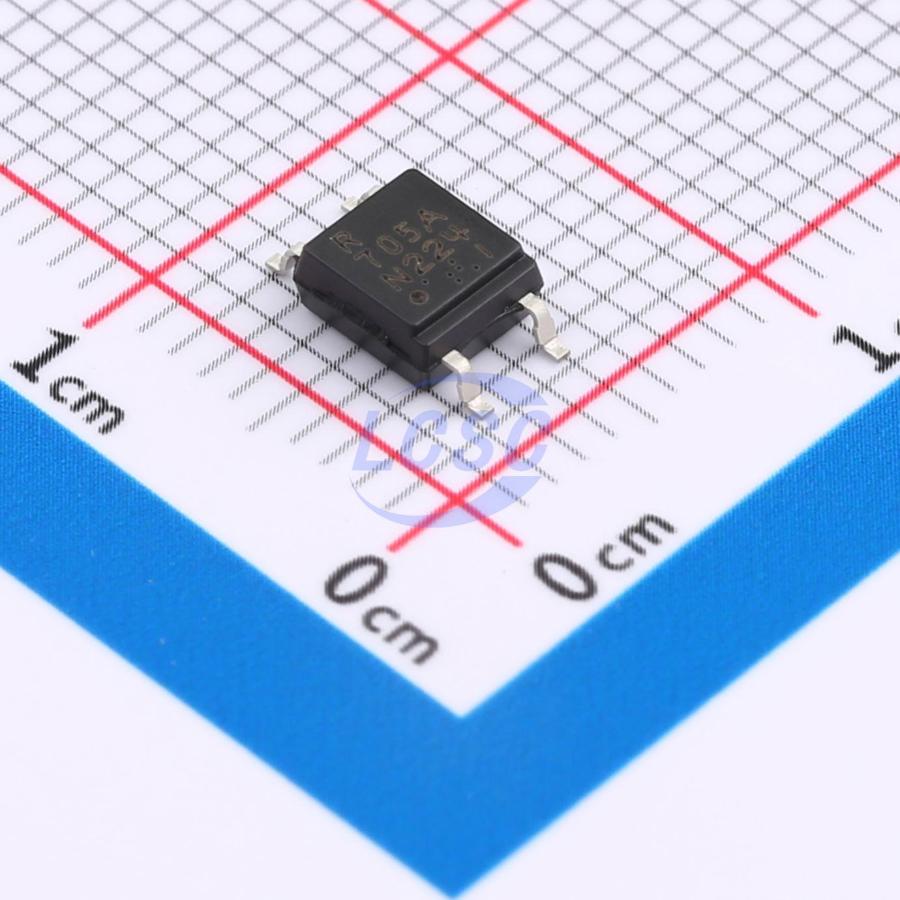

PS2705A-1 Series

High Isolation Voltage SOP Photocoupler

Manufacturer: Renesas Electronics Corporation

Catalog

High Isolation Voltage SOP Photocoupler

Part	Operating Temperature [Max]	Operating Temperature [Min]	Vce Saturation (Max) [Max]	Current Transfer Ratio (Max)	Current - DC Forward (If) (Max)	Voltage - Isolation	Voltage - Output (Max) [Max]	Supplier Device Package	Current - Output / Channel	Voltage - Forward (Vf) (Typ)	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Number of Channels	Current Transfer Ratio (Min) [Min]	Mounting Type	Package / Case	Output Type	Current - DC Forward (If) (Max) [Max]
Renesas Electronics Corporation PS2705-1-F3-A	100 °C	-55 °C	300 mV	300 %	50 mA	3750 Vrms	40 V	4-SOP	80 mA	1.1 V	5 µs	3 µs	1	50 %	Surface Mount	4-SMD Gull Wing	1.81 mOhm
Renesas Electronics Corporation PS2705A-1-A	100 °C	-55 °C	300 mV	300 %		3750 Vrms	70 V	4-SMD	30 mA		7 µs	5 µs	1	50 %	Surface Mount	4-SMD Gull Wing	1.81 mOhm	30 mA
Renesas Electronics Corporation PS2705A-1-V-F3-A	100 °C	-55 °C	300 mV	300 %		3750 Vrms	70 V	4-SMD	30 mA		7 µs	5 µs	1	50 %	Surface Mount	4-SMD Gull Wing	1.81 mOhm	30 mA
Renesas Electronics Corporation PS2705A-1-F3-A	100 °C	-55 °C	300 mV	300 %		3750 Vrms	70 V	4-SOP	30 mA		7 µs	5 µs	1	50 %	Surface Mount	4-SMD Gull Wing	1.81 mOhm	30 mA
Renesas Electronics Corporation PS2705A-1-V-A	100 °C	-55 °C	300 mV	300 %		3750 Vrms	70 V	4-SMD	30 mA		7 µs	5 µs	1	50 %	Surface Mount	4-SMD Gull Wing	1.81 mOhm	30 mA
Renesas Electronics Corporation PS2705-1-M-A	100 °C	-55 °C	300 mV	150 %	50 mA	3750 Vrms	40 V	4-SOP	80 mA	1.1 V	5 µs	3 µs	1	50 %	Surface Mount	4-SMD Gull Wing	1.81 mOhm
Renesas Electronics Corporation PS2705-1-F3-M-A	100 °C	-55 °C	300 mV	150 %	50 mA	3750 Vrms	40 V	4-SOP	80 mA	1.1 V	5 µs	3 µs	1	50 %	Surface Mount	4-SMD Gull Wing	1.81 mOhm

Catalog

High Isolation Voltage SOP Photocoupler

Description

The PS2705A-1 is an optically coupled isolator containing a GaAs light emitting diode and an NPN silicon phototransistor to realize an excellent cost performance. This package is SOP (Small Outline Package) type and has shield effect to cut off ambient light. It is designed for high density mounting applications.
