DRA4-C Series

Catalog

SOLID STATE RELAYS - SSRS DIN MT 100 VDC/8A OUT 20-28 VDC INPUT

Part	Voltage - Load [Min]	Voltage - Load [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Load Current	Package / Case	Output Type	Termination Style	Voltage - Input [Max]	Voltage - Input [Min]	Mounting Type	Circuit	On-State Resistance (Max) [Max]

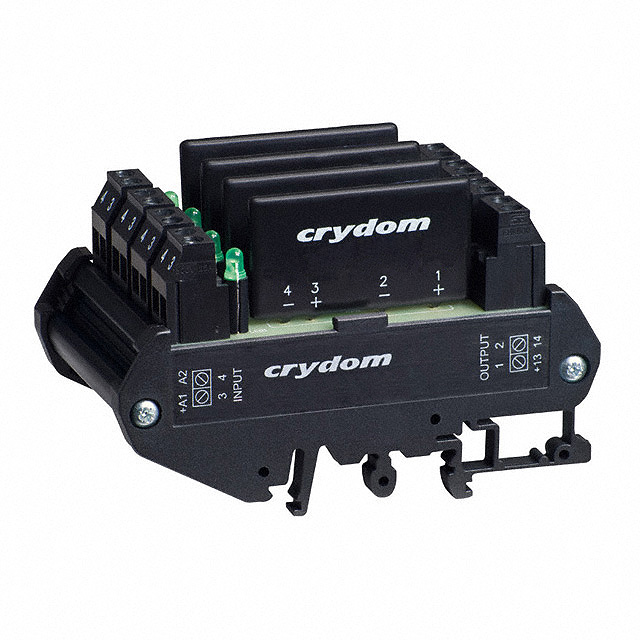

Sensata-Crydom DRA4-CMXE100D10	1 V	100 V	80 °C	-20 ░C	CE cURus	8 A	Module	DC	Screw Terminal	28 V	20 V	DIN Rail	SPST-NO (1 Form A) x 4	10 mOhms
Sensata-Crydom DRA4-CMX100D10	1 V	100 V	80 °C	-20 ░C	CE cURus	8 A	Module	DC	Screw Terminal	10 VDC	3 V	DIN Rail	SPST-NO (1 Form A) x 4	10 mOhms
Sensata-Crydom DRA4-CMXE200D3	1 V	200 V	80 °C	-20 ░C	CE cURus	3 A	Module	DC	Screw Terminal	28 V	20 V	DIN Rail	SPST-NO (1 Form A) x 4	0.2 Ohms
Sensata-Crydom DRA4-CMX200D3	1 V	200 V	80 °C	-20 ░C	CE cURus	3 A	Module	DC	Screw Terminal	10 VDC	3 V	DIN Rail	SPST-NO (1 Form A) x 4	0.2 Ohms

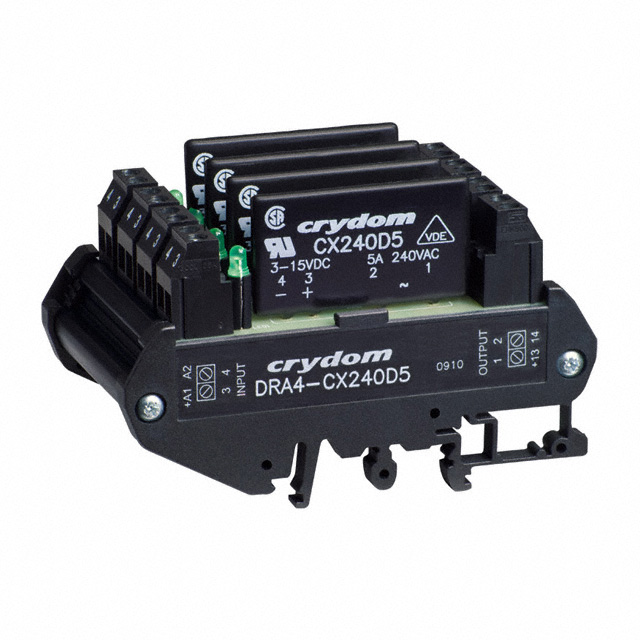

Sensata-Crydom DRA4-CX240D5	12 V	280 V	80 °C	-20 ░C	CE cURus	5 A	Module	AC Zero Cross	Screw Terminal	15 V	3 V	DIN Rail	SPST-NO (1 Form A) x 4
