1415543 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

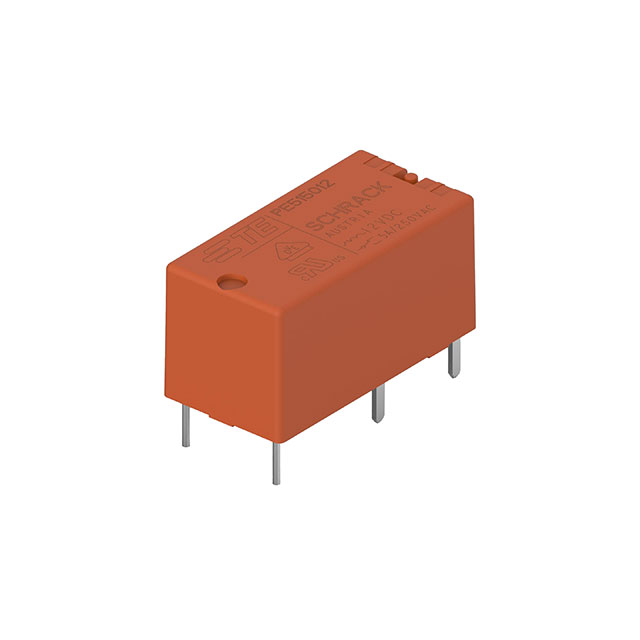

PE515012
| Part | Coil Resistance | Approval Agency | Relay Type | Mounting Type | Seal Rating | Must Operate Voltage | Contact Form | Contact Rating (Current) | Coil Type | Operate Time | Release Time | Contact Material | Switching Voltage [Max] | Coil Current | Load - Max Switching [Max] | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Coil Voltage | Must Release Voltage | Load - Max Switching | Coil Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 685 Ohms | cURus VDE | General Purpose | Through Hole | Sealed - Fully | 9 VDC | SPDT (1 Form C) | 5 A | Non Latching | 8 ms | 8 ms | Gold (Au) Silver Nickel (AgNi) | 400 VAC | 17.5 mA | 2000 VA | PC Pin | 85 °C | -40 C | 12 VDC | |||
 TE Connectivity AMP Connectors | 32500 Ohms | CQC CSA cURus VDE | General Purpose | Through Hole | Sealed - Flux Protection | 175.5 VAC | SPDT (1 Form C) | 12 A | Non Latching | 8 ms | 6 ms | Silver Nickel (AgNi) | 400 VAC | 7.1 mA | PC Pin | 70 °C | -40 C | 230 VAC | 34.5 VAC | 4800 VA | Class F |
