INMP510 Series
Manufacturer: TDK Corporation
Beta
⌘K

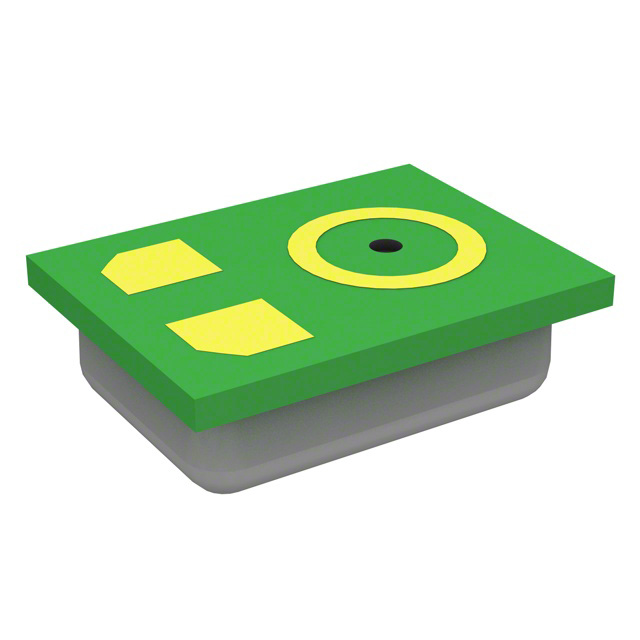

MIC MEMS ANALOG OMNI -38DB
| Part | Voltage Range [Max] | Voltage Range [Min] | S/N Ratio | Type | Termination | Output Type | Frequency Range [Min] | Frequency Range [Max] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Impedance | Sensitivity | Height (Max) [Max] [z] | Height (Max) [z] | Port Location | Shape | Direction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TDK Corporation | 3.63 V | 1.5 V | 65 dB | MEMS (Silicon) | Solder Pads | Analog | 60 Hz | 20 kHz | 0.132 in | 0.098 in | 3.35 mm | 2.5 mm | 350 Ohms | -38 dB | 0.043 in | 1.1 mm | Bottom | Rectangular | Omnidirectional |
