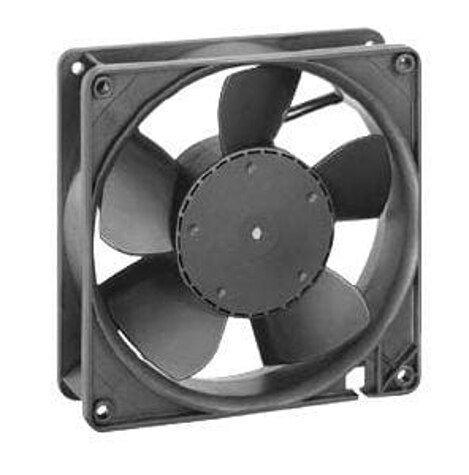

5200N Series
Manufacturer: ebm-papst Inc.
Beta
⌘K
DC FANS DC TUBEAXIAL FAN, SPEED SIGNAL, TTL COMPATIBLE
| Part | Lifetime @ Temp. | Material - Blade [custom] | Material - Frame | Voltage Range [Min] | Voltage Range [Max] | Size / Dimension [z] | Size / Dimension [x] | Operating Temperature [Min] | Operating Temperature [Max] | Noise | RPM | Width [y] | Power (Watts) | Termination | Voltage - Rated | Air Flow | Air Flow | Fan Type | Bearing Type | Weight | Weight | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | ||||||||||||||||||||||
 ebm-papst Inc. | 45000 Hrs | Aluminum | Aluminum | 7 V | 14 V | 5 in | 5 " | -20 ░C | 70 °C | 51 dB(A) | 3650 RPM | 38 mm | 9.8 W | 2 Wire Leads | 12 VDC | 4.15 m³/min | 148.3 CFM | Tubeaxial | Ball | 0.683 lb | 309.8 g | CE CSA UL VDE |
