147444 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

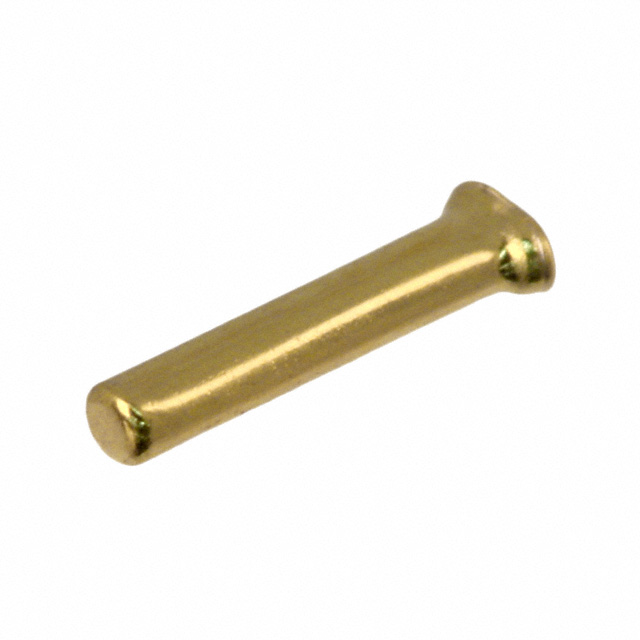

SOCKET,MIN-SPR AU-AU SER-1
| Part | Socket Depth | Socket Depth | Tail Type | Termination | Contact Material | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Flange Diameter [diameter] | Flange Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 0.217 in | 5.51 mm | No Tail | Solder | Beryllium Copper | 0.33 mm | 0.51 mm | 0.02 in | 0.013 in | 1.5 mm | 0.059 in | 0.04 in | 1.02 mm | Gold | 0.76 Ám | 30 Áin | Closed Bottom |
