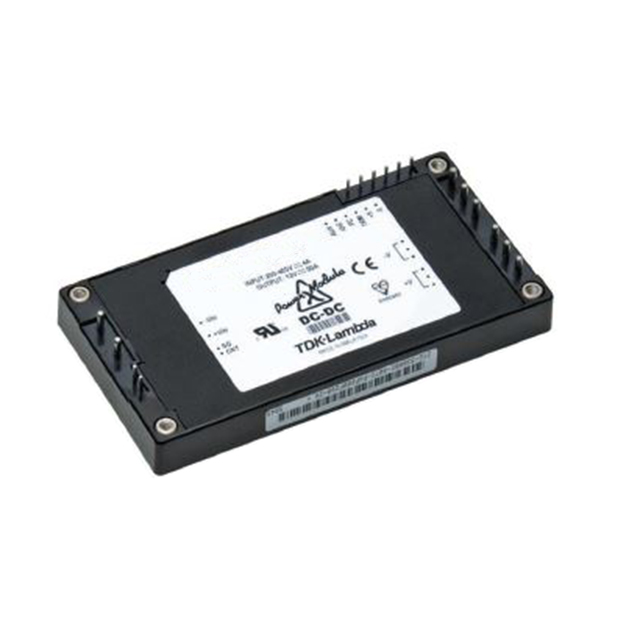

PAF600 Series

Catalog

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, FULL BRICK, 600 W, 1 OUTPUT, 12 V

Part	Control Features	Voltage - Input (Max) [Max]	Number of Outputs	Applications	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Voltage - Output 1	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Features	Package / Case	Power (Watts)	Type	Mounting Type	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]
TDK Corporation PAF600F280-12	Active Low Enable	400 VDC	1	ITE (Commercial)	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	50 A	200 V	12 V	90 %	-40 C	100 °C	3000 V	OCP OVP Remote On/Off	Full Brick	600 W	Isolated Module	Through Hole
TDK Corporation PAF600F24-28	Active Low Enable	36 V	1	ITE (Commercial)	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	21.5 A	19 V	28 V	90 %	-40 C	100 °C	1.5 kV	OCP OVP Remote On/Off	Full Brick	600 W	Isolated Module	Through Hole
TDK Corporation PAF600F24-12	Active Low Enable	36 V	1	ITE (Commercial)	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	50 A	20 V	12 V	90 %	-40 C	100 °C	1.5 kV	OCP OVP Remote On/Off	Full Brick	600 W	Isolated Module	Through Hole
TDK Corporation PAF600F280-24/T	Active Low Enable	400 VDC	1	ITE (Commercial)	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	25 A	200 V		91 %	-40 C	100 °C	3000 V	OCP OVP Remote On/Off	Full Brick	600 W	Isolated Module	Through Hole	28.8 V	14.4 V
TDK Corporation PAF600F48-12	Active Low Enable	76 V	1	ITE (Commercial)	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	50 A	36 V	12 V	90 %	-40 C	100 °C	1.5 kV	OCP OVP Remote On/Off	Full Brick	600 W	Isolated Module	Through Hole
TDK Corporation PAF600F280-48/T	Active Low Enable	400 VDC	1	ITE (Commercial)	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	12.5 A	200 V		91 %	-40 C	100 °C	3000 V	OCP OVP Remote On/Off	Full Brick	600 W	Isolated Module	Through Hole		28.8 V	57.6 V
TDK Corporation PAF600F280-28/T	Active Low Enable	400 VDC	1	ITE (Commercial)	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	21.5 A	200 V		91 %	-40 C	100 °C	3000 V	OCP OVP Remote On/Off	Full Brick	600 W	Isolated Module	Through Hole		16.8 V	33.6 V
