745-124 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FML 124POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Number of Positions/Bay/Row	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Card Thickness [Max]	Card Thickness [Min]	Card Type	Contact Type	Contact Material	Pitch	Pitch	Contact Finish	Read Out	Gender	Mounting Type	Color	Number of Positions
EDAC Inc. 745-124-545-201	2	Polyester Thermoplastic	62	2	30 Áin	0.76 Ám	-40 C	105 ░C	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Cantilever	Copper Alloy	0.1 "	2.54 mm	Gold	Dual	Female	Through Hole	Black	124
EDAC Inc. 745-124-540-206	2	Polyester Thermoplastic	62	2	30 Áin	0.76 Ám	-40 C	105 ░C	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Cantilever	Copper Alloy	0.1 "	2.54 mm	Gold	Dual	Female	Through Hole	Black	124

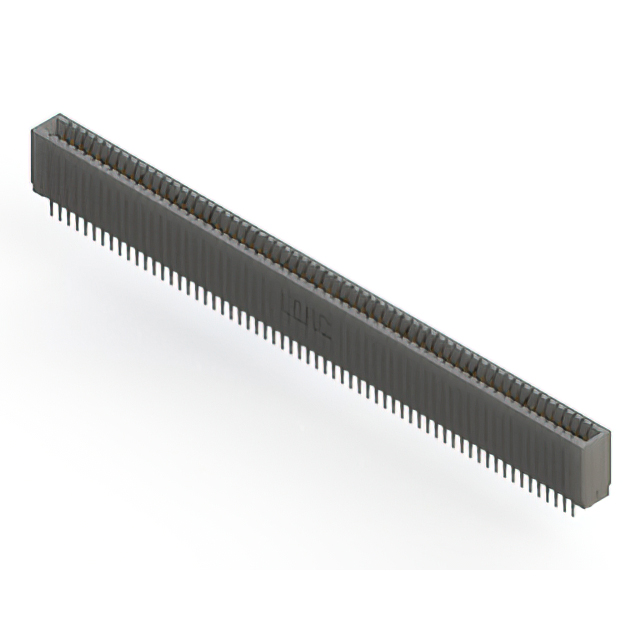

EDAC Inc. 745-124-560-201	2	Polyester Thermoplastic	62	2	30 Áin	0.76 Ám	-40 C	105 ░C	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Cantilever Make Before Break	Copper Alloy	0.1 "	2.54 mm	Gold	Dual	Female	Through Hole	Black	124
EDAC Inc. 745-124-522-201	2	Polyester Thermoplastic	62	2	30 Áin	0.76 Ám	-40 C	105 ░C	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Cantilever	Copper Alloy	0.1 "	2.54 mm	Gold	Dual	Female	Through Hole	Black	124

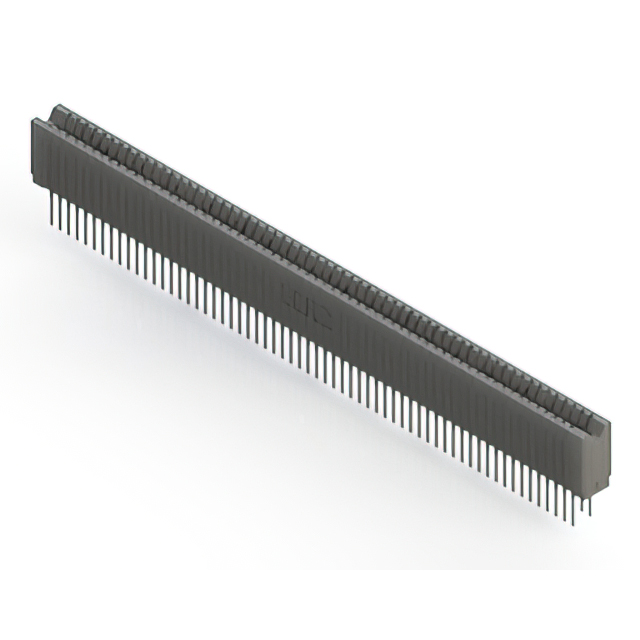

EDAC Inc. 745-124-522-206	2	Polyester Thermoplastic	62	2	30 Áin	0.76 Ám	-40 C	105 ░C	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Cantilever	Copper Alloy	0.1 "	2.54 mm	Gold	Dual	Female	Through Hole	Black	124
EDAC Inc. 745-124-541-206	2	Polyester Thermoplastic	62	2	30 Áin	0.76 Ám	-40 C	105 ░C	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Cantilever	Copper Alloy	0.1 "	2.54 mm	Gold	Dual	Female	Through Hole	Black	124
EDAC Inc. 745-124-520-201	2	Polyester Thermoplastic	62	2	30 Áin	0.76 Ám	-40 C	105 ░C	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Cantilever	Copper Alloy	0.1 "	2.54 mm	Gold	Dual	Female	Through Hole	Black	124

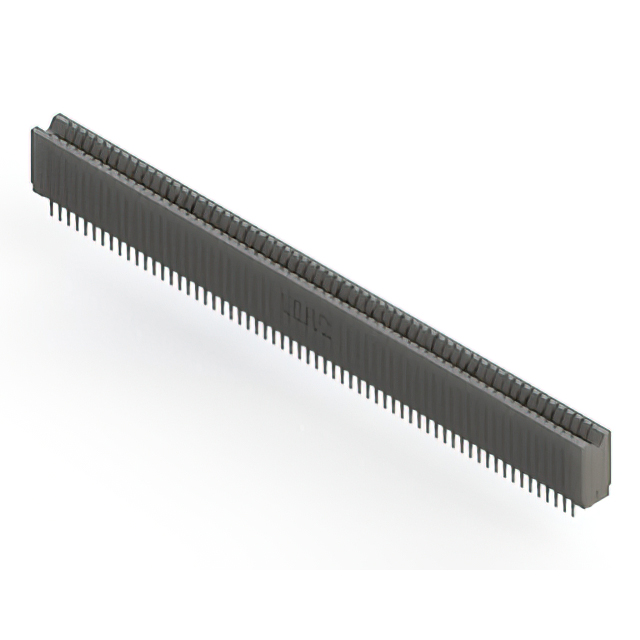

EDAC Inc. 745-124-525-206	2	Polyester Thermoplastic	62	2	30 Áin	0.76 Ám	-40 C	105 ░C	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Cantilever	Copper Alloy	0.1 "	2.54 mm	Gold	Dual	Female	Through Hole	Black	124
EDAC Inc. 745-124-520-206	2	Polyester Thermoplastic	62	2	30 Áin	0.76 Ám	-40 C	105 ░C	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Cantilever	Copper Alloy	0.1 "	2.54 mm	Gold	Dual	Female	Through Hole	Black	124
EDAC Inc. 745-124-540-201	2	Polyester Thermoplastic	62	2	30 Áin	0.76 Ám	-40 C	105 ░C	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Cantilever	Copper Alloy	0.1 "	2.54 mm	Gold	Dual	Female	Through Hole	Black	124
