Rxx-B Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 5W 15VIN/100VOUT 25MA SNGL 3KV ISO

Part	Power (Watts)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Voltage - Input (Min) [Min]	Number of Outputs	Package / Case	Voltage - Output 1 [custom]	Applications	Type	Current - Output (Max) [Max]	Voltage - Isolation	Approval Agency	Voltage - Input (Max) [Max]	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Efficiency

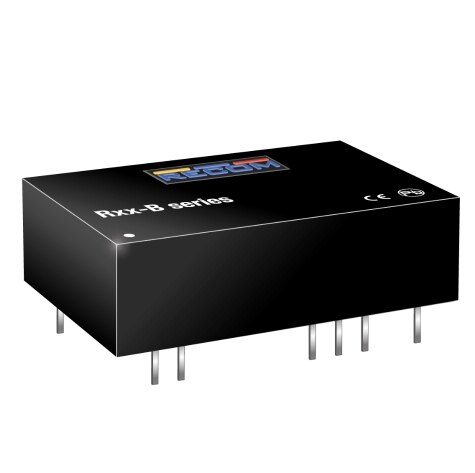

Recom Power R15-100B	5 W	31.8 mm	1.25 in	0.37 in	9.4 mm	20.3 mm	0.8 "	Through Hole	-40 °C	85 °C	SCP	14 V	1	24-DIP Module	59 V 130 V	ITE (Commercial)	High Voltage - Isolated Module	50 mA	3000 V	CE EAC	17 V
Recom Power R12-150B	5 W	31.8 mm	1.25 in	0.37 in	9.4 mm	20.3 mm	0.8 "	Through Hole	-40 °C	85 °C	SCP	10 VDC	1	24-DIP Module		ITE (Commercial)	High Voltage - Isolated Module	50 mA	3000 V	CE EAC	14 V	200 V	92 V
Recom Power R12-100B	5 W	31.8 mm	1.25 in	0.37 in	9.4 mm	20.3 mm	0.8 "	Through Hole	-40 °C	85 °C	SCP	10 VDC	1	24-DIP Module		ITE (Commercial)	High Voltage - Isolated Module	50 mA	3000 V	CE EAC	14 V	135 V	50 V
Recom Power R24-150B	5 W	31.8 mm	1.25 in	0.37 in	9.4 mm	20.3 mm	0.8 "	Through Hole	-40 °C	85 °C	SCP	21 V	1	24-DIP Module		ITE (Commercial)	High Voltage - Isolated Module	50 mA	3000 V	CE EAC	27 V	200 V	92 V	84 %
Recom Power R15-150B	5 W	31.8 mm	1.25 in	0.37 in	9.4 mm	20.3 mm	0.8 "	Through Hole	-40 °C	85 °C	SCP	14 V	1	24-DIP Module		ITE (Commercial)	High Voltage - Isolated Module	50 mA	3000 V	CE EAC	17 V	200 V	92 V
Recom Power R05-100B	3 W	31.8 mm	1.25 in	0.37 in	9.4 mm	20.3 mm	0.8 "	Through Hole	-40 °C	85 °C	SCP	4.5 V	1	24-DIP Module		ITE (Commercial)	High Voltage - Isolated Module	50 mA	3000 V	CE EAC	6 V	120 V	41 V	77 %

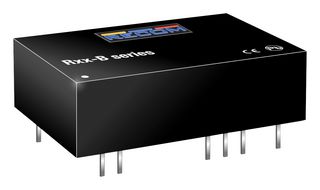

Recom Power R24-100B	5 W	31.8 mm	1.25 in	0.37 in	9.4 mm	20.3 mm	0.8 "	Through Hole	-40 °C	85 °C	SCP	21 V	1	24-DIP Module		ITE (Commercial)	High Voltage - Isolated Module	50 mA	3000 V	CE EAC	27 V	135 V	56 V	84 %
