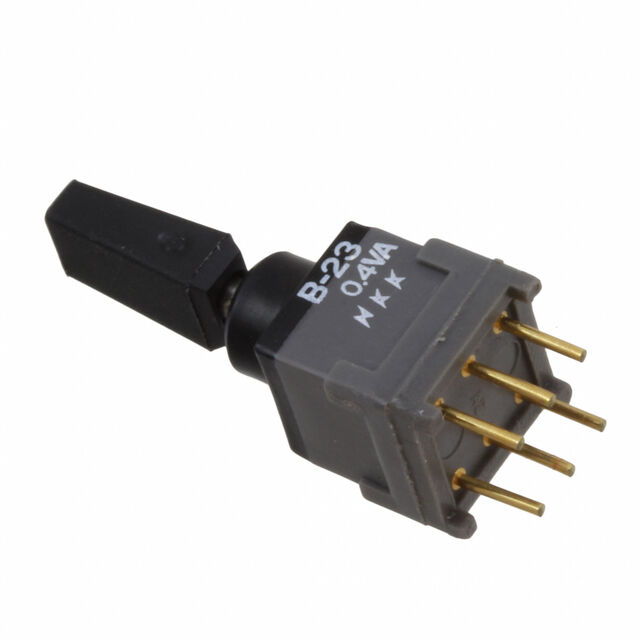

B23KP Series
Manufacturer: NKK Switches
Beta
⌘K
PROCESS SEALED SUBMINIATURE ANTISTATIC TOGGLE
| Part | Actuator Material | Electrical Life | Actuator Length [x] | Voltage Rating - AC | Features | Actuator Type | Voltage Rating - DC | Mounting Type | Circuit | Switch Function | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Bushing Thread | Current Rating (Amps) | Illumination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | Brass Nickel Plated | 50000 Cycles | 9.4 mm | 28 V | Black Actuator | Snap On Paddle | 28 V | Through Hole | DPDT | On-Off-On | PC Pin | 85 °C | -30 ░C | Unthreaded | 0.4 VA | Non-Illuminated |
