TOGGLE SWITCHES DPDT (ON)-OFF-(ON)

Part	Actuator Type	Voltage Rating - AC	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Actuator Length [x]	Switch Function	Bushing Thread	Current Rating (Amps)	Circuit	Illumination	Mounting Type	Features	Actuator Material	Electrical Life	Panel Cutout Dimensions [diameter]

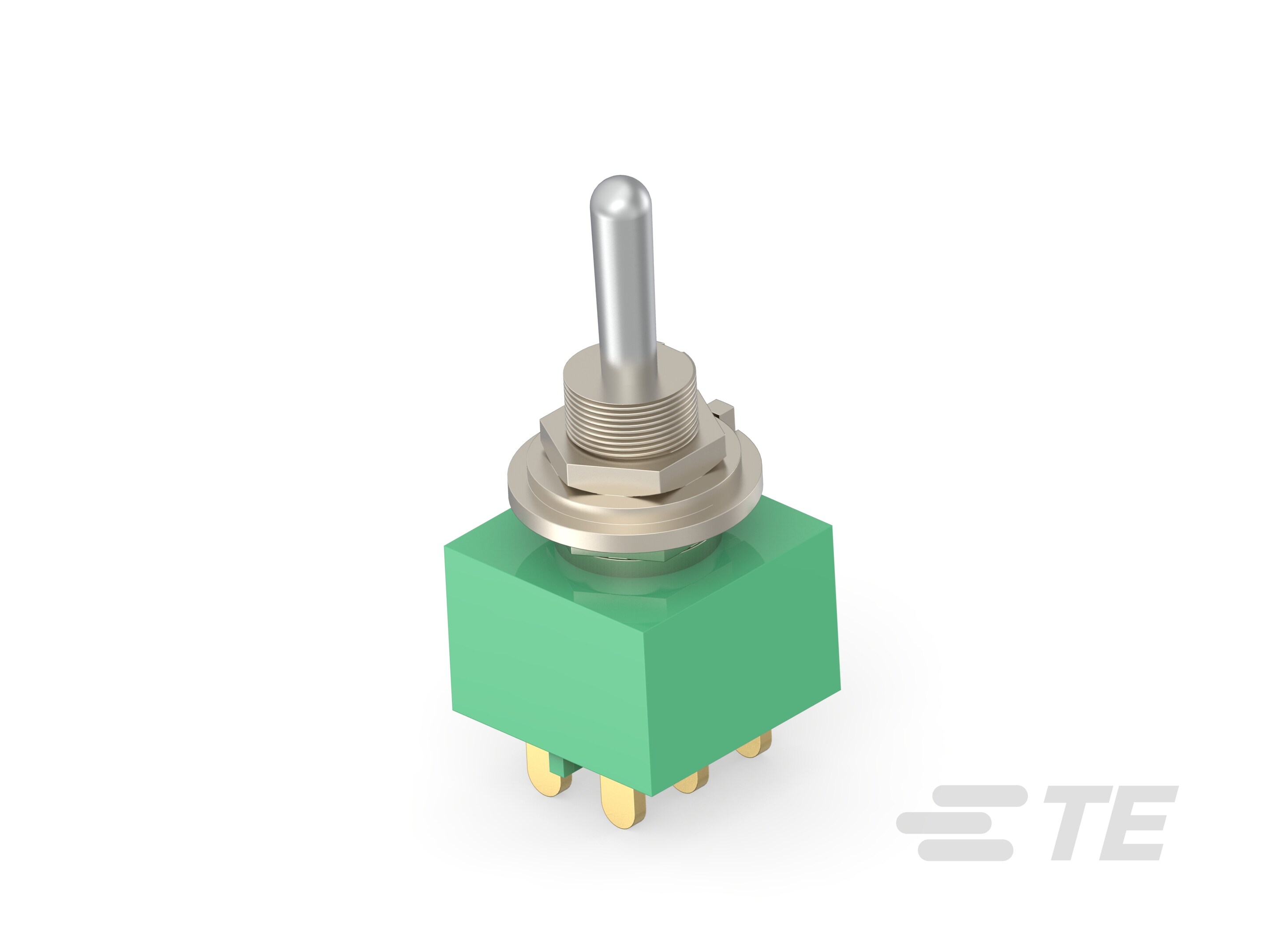

TE Connectivity AMP Connectors MTA206S	Standard Round	125 V	Solder Lug	80 °C	-20 ░C	28 V	10.49 mm	Mom-On-Mom	1/4-40	4 A 6 A	DPDT	Non-Illuminated	Panel Mount	Epoxy Sealed Terminals
TE Connectivity AMP Connectors MTA306DPC	Standard Round		PC Pin				10.49 mm	On-On	1/4-40		3PDT	Non-Illuminated	Panel Mount
TE Connectivity AMP Connectors MTA306E	Standard Round	125 V	Solder Lug	80 °C	-20 ░C	28 V	10.49 mm	On-Off-On	1/4-40	4 A 6 A	3PDT	Non-Illuminated	Panel Mount	Epoxy Sealed Terminals
TE Connectivity AMP Connectors MTG106E	Standard Round	125 V	Solder Lug	80 °C	-20 ░C	28 V	11.5 mm	On-Off-On	15/32-32	4 A 6 A	SPDT	Non-Illuminated	Panel Mount	Epoxy Sealed Terminals

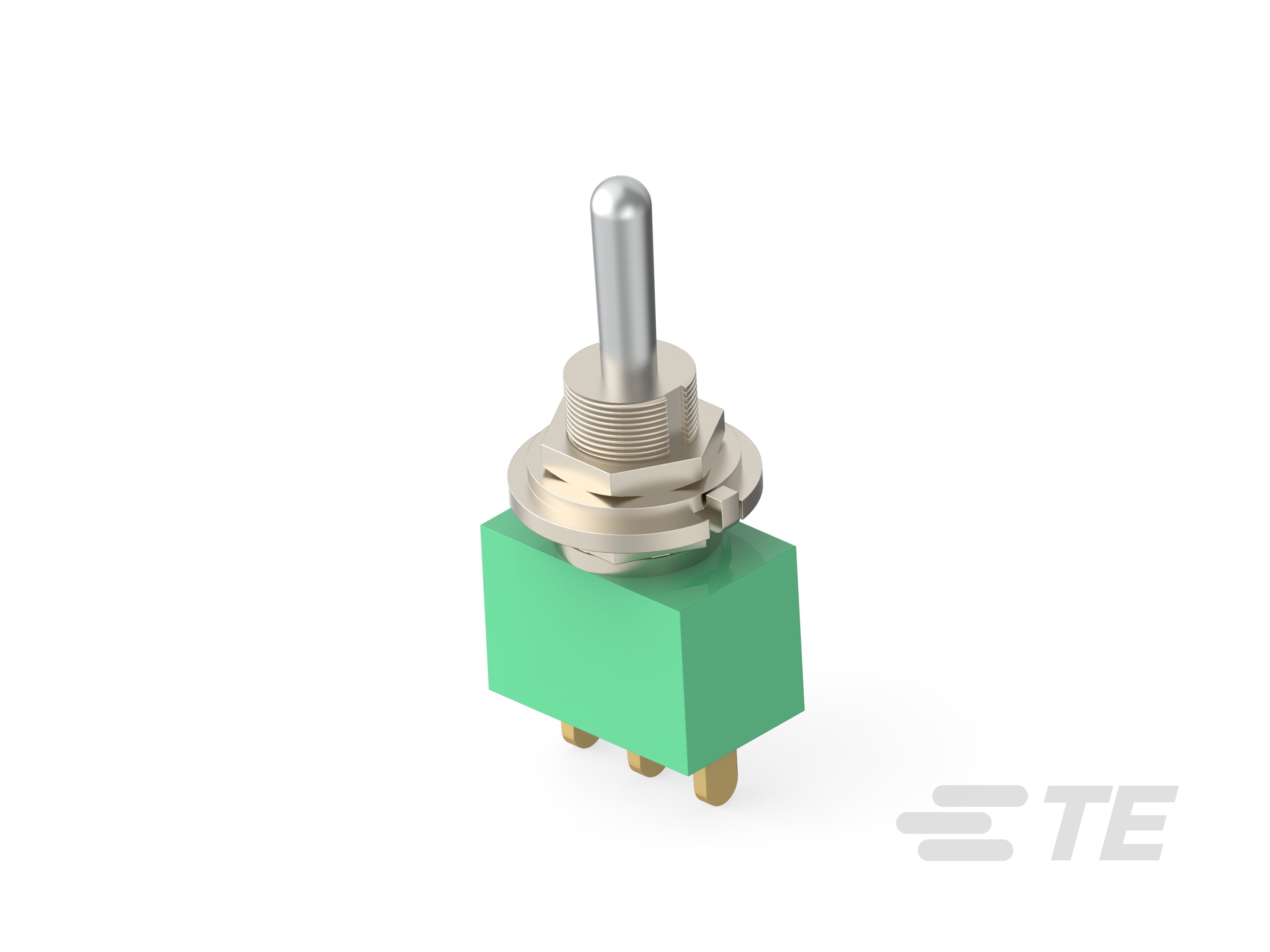

TE Connectivity AMP Connectors MTA106E	Standard Round	125 V	Solder Lug	80 °C	-20 ░C	28 V	10.49 mm	On-Off-On	1/4-40	4 A 6 A	SPDT	Non-Illuminated	Panel Mount	Epoxy Sealed Terminals	Brass Nickel Plated	60000 Cycles	6.4 mm
TE Connectivity AMP Connectors MTM306DPC	Standard Round	125 V	PC Pin	80 °C	-20 ░C	28 V	6.9 mm	On-On	1/4-40	4 A 6 A	3PDT	Non-Illuminated	Panel Mount	Epoxy Sealed Terminals	Brass Nickel Plated
