284506 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

TERM BLOCK PLUG 6POS STR 3.5MM

Part	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Type	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Current - UL	Positions Per Level	Features	Contact Material	Mounting Type	Torque - Screw	Torque - Screw	Contact Mating Finish	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Screw Size	Termination Style	Insulation Height	Insulation Height	Wire Strip Length [Min]	Wire Strip Length [Max]	Number of Positions	Voltage - UL	Number of Levels	Pitch [x]	Pitch [x]	Color	Number of Positions

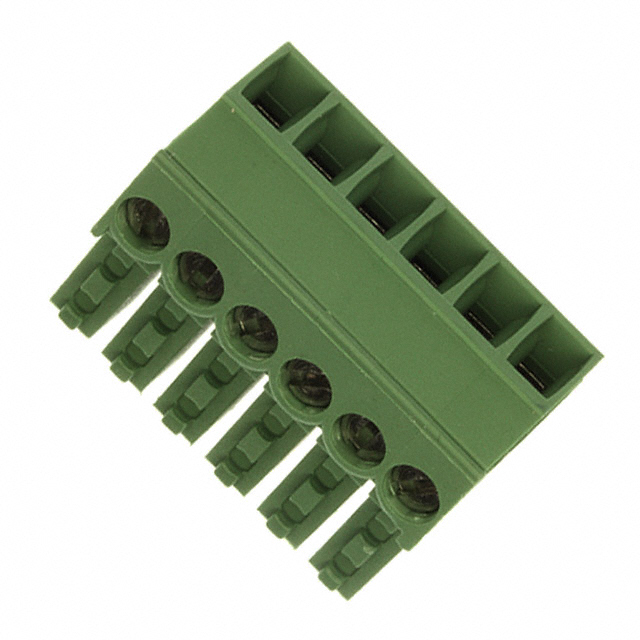

TE Connectivity Raychem Cable Protection 284506-6	14 AWG	30 AWG	Plug Female Sockets	-40 °C	110 °C	UL94 V-0	11 A	6	Side Stacking	Phosphor Bronze	Free Hanging (In-Line)	2.7 Lb-In	0.31 Nm	Tin	0.05 mm²	2 mm²	M2	Screw - Rising Cage Clamp	0.437 in	11.1 mm	5 mm	6 mm	6	300 V	1	3.5 mm	0.138 in	Green

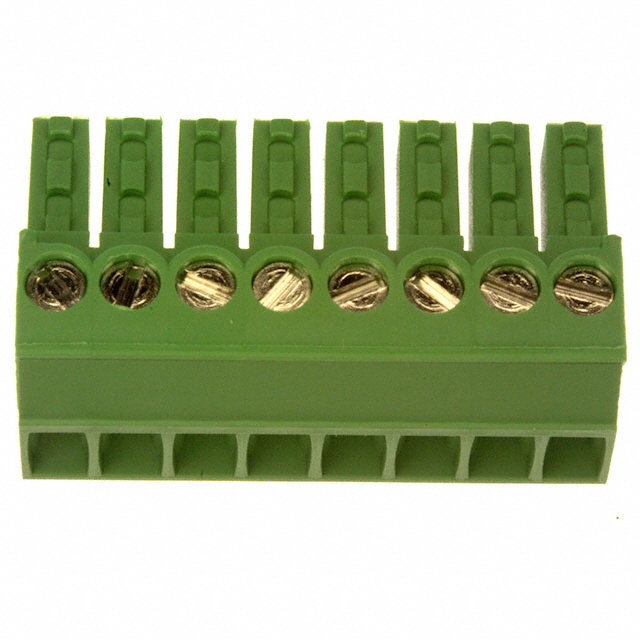

TE Connectivity Raychem Cable Protection 284506-8	14 AWG	30 AWG	Plug Female Sockets	-40 °C	110 °C	UL94 V-0	11 A	8	Side Stacking	Phosphor Bronze	Free Hanging (In-Line)	2.7 Lb-In	0.31 Nm	Tin	0.05 mm²	2 mm²	M2	Screw - Rising Cage Clamp	0.437 in	11.1 mm	5 mm	6 mm	8	300 V	1	3.5 mm	0.138 in	Green

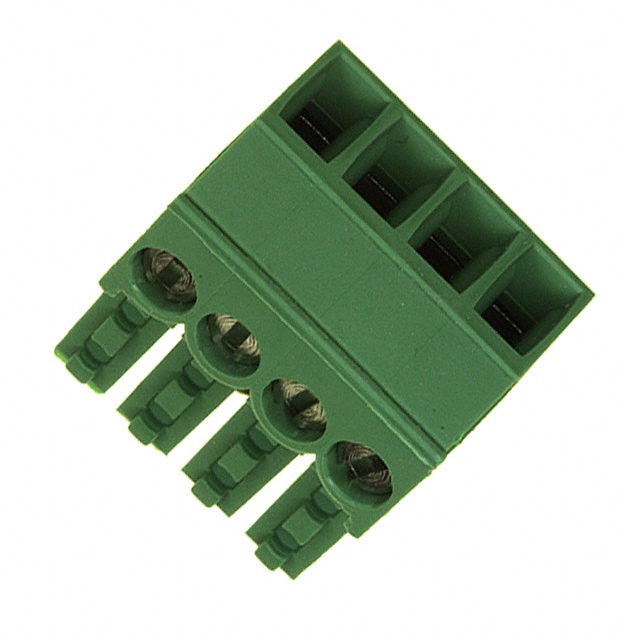

TE Connectivity Raychem Cable Protection 284506-4	14 AWG	30 AWG	Plug Female Sockets	-40 °C	110 °C	UL94 V-0	11 A	4	Side Stacking	Phosphor Bronze	Free Hanging (In-Line)	2.7 Lb-In	0.31 Nm	Tin	0.05 mm²	2 mm²	M2	Screw - Rising Cage Clamp	0.437 in	11.1 mm	5 mm	6 mm	4	300 V	1	3.5 mm	0.138 in	Green
TE Connectivity Raychem Cable Protection 284506-9	14 AWG	30 AWG	Plug Female Sockets	-40 °C	110 °C	UL94 V-0	11 A	9	Side Stacking	Phosphor Bronze	Free Hanging (In-Line)	2.7 Lb-In	0.31 Nm	Tin	0.05 mm²	2 mm²	M2	Screw - Rising Cage Clamp	0.437 in	11.1 mm	5 mm	6 mm	9	300 V	1	3.5 mm	0.138 in	Green
TE Connectivity Raychem Cable Protection 2-284506-3	14 AWG	30 AWG	Plug Female Sockets	-40 °C	110 °C	UL94 V-0	11 A	23	Side Stacking	Phosphor Bronze	Free Hanging (In-Line)	2.7 Lb-In	0.31 Nm	Tin	0.05 mm²	2 mm²	M2	Screw - Rising Cage Clamp	0.437 in	11.1 mm	5 mm	6 mm	23	300 V	1	3.5 mm	0.138 in	Green
TE Connectivity Raychem Cable Protection 1-284506-6	14 AWG	30 AWG	Plug Female Sockets	-40 °C	110 °C	UL94 V-0	11 A	16	Side Stacking	Phosphor Bronze	Free Hanging (In-Line)	2.7 Lb-In	0.31 Nm	Tin	0.05 mm²	2 mm²	M2	Screw - Rising Cage Clamp	0.437 in	11.1 mm	5 mm	6 mm		300 V	1	3.5 mm	0.138 in	Green	16
TE Connectivity Raychem Cable Protection 1-284506-3	14 AWG	30 AWG	Plug Female Sockets	-40 °C	110 °C	UL94 V-0	11 A	13	Side Stacking	Phosphor Bronze	Free Hanging (In-Line)	2.7 Lb-In	0.31 Nm	Tin	0.05 mm²	2 mm²	M2	Screw - Rising Cage Clamp	0.437 in	11.1 mm	5 mm	6 mm	13	300 V	1	3.5 mm	0.138 in	Green
