PTH12 Series

Catalog

MODULE DC-DC 12VIN 1-OUT 0.55V TO 1.8V 12A 10-PIN DIP SMD MODULE T/R

Part	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Voltage - Input (Min) [Min]	Package / Case	Applications	Features	Type	Efficiency	Voltage - Input (Max) [Max]	Number of Outputs	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]
Texas Instruments PTH12010YAZT	1.8 V	0.55 V	10.8 V	10-SMD Module	ITE (Commercial)	OCP Remote On/Off UVLO	Non-Isolated PoL Module	88 %	13.2 V	1	Surface Mount	1.37 in	15.7 mm	9.7 mm	34.8 mm	0.38 in	0.62 "	85 °C	-40 °C	12 A
Texas Instruments PTH12000WAST	5.5 V	1.2 V	10.8 V	5-SMD Module	ITE (Commercial)	OCP UVLO	Non-Isolated PoL Module	92 %	13.2 V	1	Surface Mount	0.75 in	12.7 mm	9.1 mm	19.1 mm	0.36 in	0.5 in	85 °C	-40 °C	6 A
Texas Instruments PTH12060YAS	1.8 V	0.55 V	10.8 V	10-SMD Module	ITE (Commercial)	OCP Remote On/Off UVLO	Non-Isolated PoL Module	83 %	13.2 V	1	Surface Mount	0.99 in	15.8 mm	9.6 mm	25.3 mm	0.38 in	0.62 "	85 °C	-40 °C	10 A
Texas Instruments PTH12030WAST	5.5 V	1.2 V	10.2 V	13-SMD Module	ITE (Commercial)	OCP OTP Remote On/Off UVLO	Non-Isolated PoL Module	94.5 %	13.8 V	1	Surface Mount	1.37 in	28.4 mm	9.7 mm	34.8 mm	0.38 in	1.12 in	85 °C	-40 °C	26 A
Texas Instruments PTH12010YAS	1.8 V	0.55 V	10.8 V	10-SMD Module	ITE (Commercial)	OCP Remote On/Off UVLO	Non-Isolated PoL Module	85 %	13.2 V	1	Surface Mount	1.37 in	15.8 mm	9.6 mm	34.8 mm	0.38 in	0.62 "	85 °C	-40 °C	12 A
Texas Instruments PTH12010LAST	1.8 V	0.8 V	10.8 V	10-SMD Module	ITE (Commercial)	OCP Remote On/Off UVLO	Non-Isolated PoL Module	89 %	13.2 V	1	Surface Mount	1.37 in	15.7 mm	9.7 mm	34.8 mm	0.38 in	0.62 "	85 °C	-40 °C	12 A

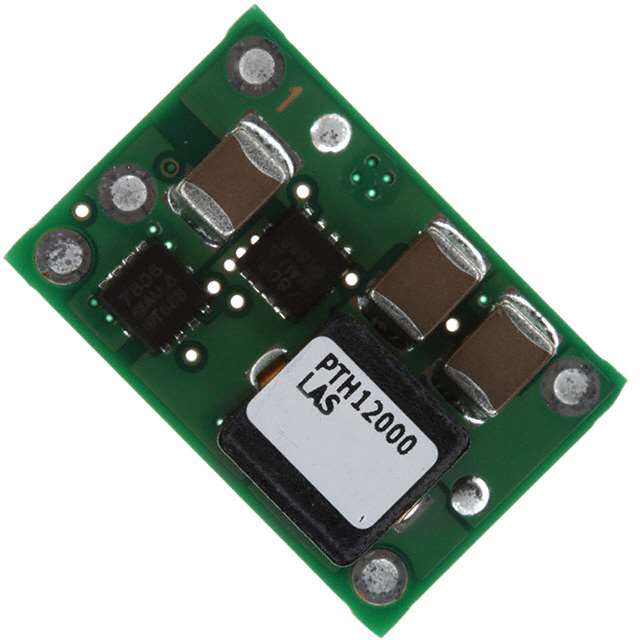

Texas Instruments PTH12000LAS	1.8 V	0.8 V	10.8 V	5-SMD Module	ITE (Commercial)	OCP UVLO	Non-Isolated PoL Module	87 %	13.2 V	1	Surface Mount	0.75 in	12.7 mm	9.1 mm	19.1 mm	0.36 in	0.5 in	85 °C	-40 °C	6 A
Texas Instruments PTH12000LAST	1.8 V	0.8 V	10.8 V	5-SMD Module	ITE (Commercial)	OCP UVLO	Non-Isolated PoL Module	87 %	13.2 V	1	Surface Mount	0.75 in	12.7 mm	9.1 mm	19.1 mm	0.36 in	0.5 in	85 °C	-40 °C	6 A
