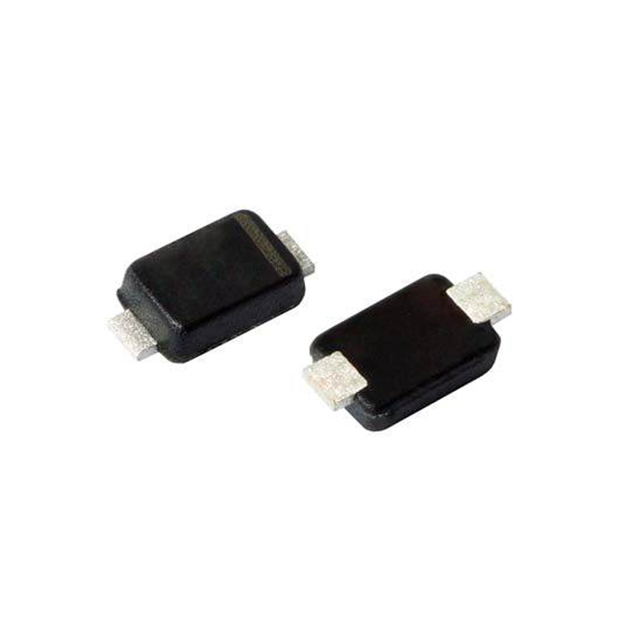

PLZ7V5 Series

Catalog

DIODE ZENER 7.48V 960MW DO219AC

Part	Operating Temperature	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If	Mounting Type	Qualification	Grade	Power - Max [Max]	Supplier Device Package	Voltage - Zener (Nom) (Vz)	Package / Case	Tolerance
Vishay General Semiconductor - Diodes Division PLZ7V5C-HG3_A/H	150 °C	500 nA	900 mV	Surface Mount	AEC-Q101	Automotive	960 mW	DO-219AC (microSMF)	7.48 V	DO-219AC	2.54 %
Vishay General Semiconductor - Diodes Division PLZ7V5B-HG3_A/H	150 °C	500 nA	900 mV	Surface Mount	AEC-Q101	Automotive	960 mW	DO-219AC (microSMF)	7.26 V	DO-219AC
Vishay General Semiconductor - Diodes Division PLZ7V5B-G3/H	150 °C	500 nA	900 mV	Surface Mount			960 mW	DO-219AC (microSMF)	7.26 V	DO-219AC
Vishay General Semiconductor - Diodes Division PLZ7V5A-G3/H	150 °C	500 nA	900 mV	Surface Mount			960 mW	DO-219AC (microSMF)	7.04 V	DO-219AC	2.63 %
Vishay General Semiconductor - Diodes Division PLZ7V5C-G3/H	150 °C	500 nA	900 mV	Surface Mount			960 mW	DO-219AC (microSMF)	7.48 V	DO-219AC	2.54 %
