MX23A26N Series

Catalog

CONN HEADER R/A 26POS 2.5MM

Part	Applications	Insulation Material	Insulation Color	Features	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Contact Type	Number of Positions	Connector Type	Ingress Protection	Contact Finish - Post	Contact Shape	Number of Rows [custom]	Shrouding	Mounting Type	Fastening Type	Termination	Current Rating (Amps)	Row Spacing - Mating	Row Spacing - Mating	Number of Positions Loaded	Style

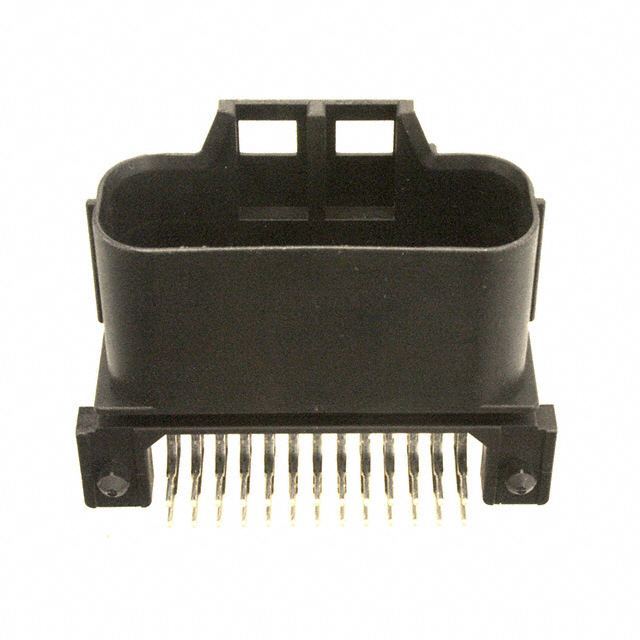

JAE Electronics MX23A26NF1	Automotive	Polybutylene Terephthalate (PBT) Glass Filled	Black	Board Guide	125 °C	-40 C	Brass	0.122 in	3.1 mm	0.72 in	18.3 mm	2.5 mm	0.098 in	Male Pin	26	Header	Waterproof	Tin	Square	2	Shrouded - 4 Wall	Right Angle Through Hole	Latch Holder	Solder	3 A	4.4 mm	0.173 "	All	Board to Cable/Wire
JAE Electronics MX23A26NF5
JAE Electronics MX23A26NF3	Automotive	Polybutylene Terephthalate (PBT) Glass Filled	Black	Mounting Flange	125 °C	-40 C	Brass	0.122 in	3.1 mm	0.72 in	18.3 mm	2.5 mm	0.098 in	Male Pin	26	Header	Waterproof	Tin	Square	2	Shrouded - 4 Wall	Right Angle Through Hole	Latch Holder	Solder	3 A	4.4 mm	0.173 "	All	Board to Cable/Wire

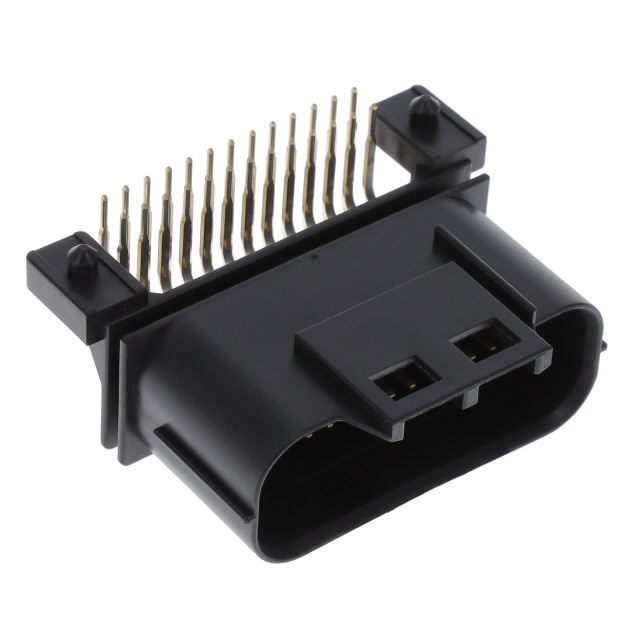

JAE Electronics MX23A26NF2	Automotive	Polybutylene Terephthalate (PBT) Glass Filled	Black	Board Guide	125 °C	-40 C	Brass	0.122 in	3.1 mm	0.72 in	18.3 mm	2.5 mm	0.098 in	Male Pin	26	Header	Waterproof	Tin	Square	2	Shrouded - 4 Wall	Right Angle Through Hole	Latch Holder	Solder	3 A	4.4 mm	0.173 "	All	Board to Cable/Wire
