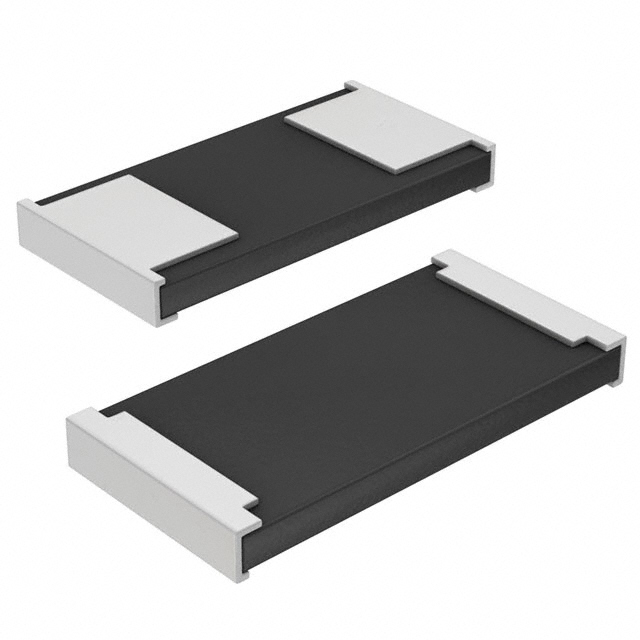

PMR50HZPJ000 Series

5025(2010)Size, Ultra-Low Ohmic Jumper Resistors (AEC-Q200 Qualified)

Catalog

5025(2010)Size, Ultra-Low Ohmic Jumper Resistors (AEC-Q200 Qualified)

Part	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Ratings	Resistance	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Number of Terminations	Composition	Features	Supplier Device Package	Tolerance
Rohm Semiconductor PMR50HZPJ000	155 °C	-55 °C	0.47 mm	0.019 in	AEC-Q200	0 Ohms	2010 (5025 Metric)	0.197 in	0.098 in	5 mm	2.5 mm	2	Metal Element	Automotive AEC-Q200 Current Sense	2010	Jumper

Catalog

5025(2010)Size, Ultra-Low Ohmic Jumper Resistors (AEC-Q200 Qualified)

Description

ROHM's ultra-low resistance jumper chip resistors feature a maximum conduction resistance of 0.5mO with improved rated current, resulting in minimal voltage loss and voltage drop at high currents.
