ME10A0503 Series

Manufacturer: SL POWER / Advanced Energy

Catalog

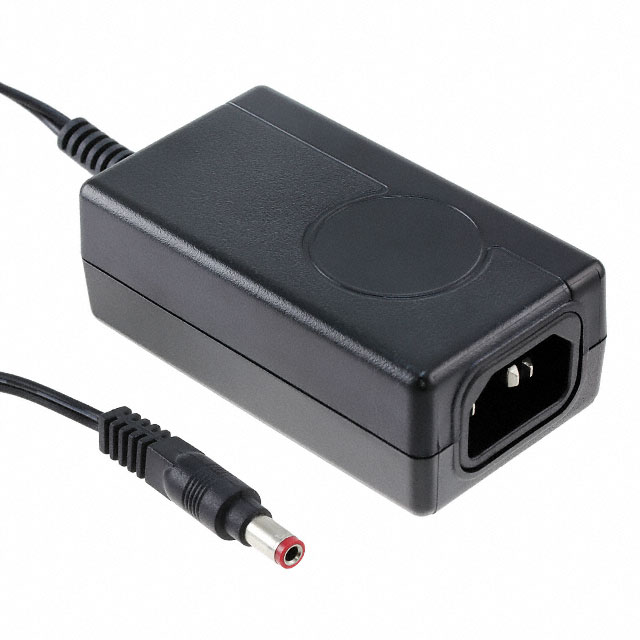

AC/DC DESKTOP ADAPTER 5V 10W

Part	Voltage - Input [Max]	Voltage - Input [Min]	Applications	Cord Length	Cord Length	Form	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Approval Agency	Output Connector [diameter]	Output Connector [x]	Output Connector	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Input Type	No Load Power Consumption	Region Utilized	Input Connector	Power (Watts)	Polarization	Efficiency	Voltage - Output
SL POWER / Advanced Energy ME10A0503N01	264 VAC	90 VAC	Medical	1.5 m	59 in	Desktop (Class II)	31 mm	47 mm	3.31 "	1.22 in	1.85 in	84 mm	CE cURus DEMKO	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	-20 ░C	50 °C	2 A	Cord (Sold Separately)	100 mW	International	IEC 320-C8	10 W	Positive Center	Level VI	5 V
SL POWER / Advanced Energy ME10A0503B01	264 VAC	90 VAC	Medical	1.5 m	59 in	Wall Mount	38 mm	47 mm	3.31 "	1.5 in	1.85 in	84 mm	CE cURus DEMKO	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	-20 ░C	50 °C	2 A	Fixed Blade Multi-Blade	100 mW	North America	NEMA 1-15P Multi-Blade	10 W	Positive Center	Level VI	5 V
SL POWER / Advanced Energy ME10A0503C01	264 VAC	90 VAC	Medical	1.5 m	59 in	Wall Mount	38 mm	47 mm	3.31 "	1.5 in	1.85 in	84 mm	CE cURus DEMKO	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	-20 ░C	70 °C	2 A	Multi-Blade (Single Blade Included)	100 mW	North America	NEMA 1-15P	10 W	Positive Center	Level VI	5 V
SL POWER / Advanced Energy ME10A0503Q01	264 VAC	90 VAC	Medical	1.5 m	59 in	Desktop (Class II)	31 mm	47 mm	3.31 "	1.22 in	1.85 in	84 mm	CE cURus DEMKO	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	-20 ░C	70 °C	2 A	Cord (Sold Separately)	100 mW	International	IEC 320-C18	10 W	Positive Center	Level VI	5 V
SL POWER / Advanced Energy ME10A0503F01	264 VAC	90 VAC	Medical	1.5 m	59 in	Desktop (Class I)	31 mm	47 mm	3.31 "	1.22 in	1.85 in	84 mm	CE cURus DEMKO	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	-20 ░C	50 °C	2 A	Cord (Sold Separately)	100 mW	International	IEC 320-C14	10 W	Positive Center	Level VI	5 V
