ELL-6GG Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K
FIXED IND 4.7UH 1.55A 70MOHM SMD
| Part | Inductance Frequency - Test | Inductance | Type | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Shielding | Package / Case | Tolerance | DC Resistance (DCR) | Height - Seated (Max) [Max] | Height - Seated (Max) | Current Rating (Amps) | Mounting Type | Current - Saturation (Isat) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | 100 kHz | 4.7 ÁH | Wirewound | 0.236 in | 6 mm | 0.236 in | 6 mm | Shielded | Nonstandard | 20 % | 70 mOhm | 0.063 in | 1.6 mm | 1.55 A | Surface Mount | 1.4 A |

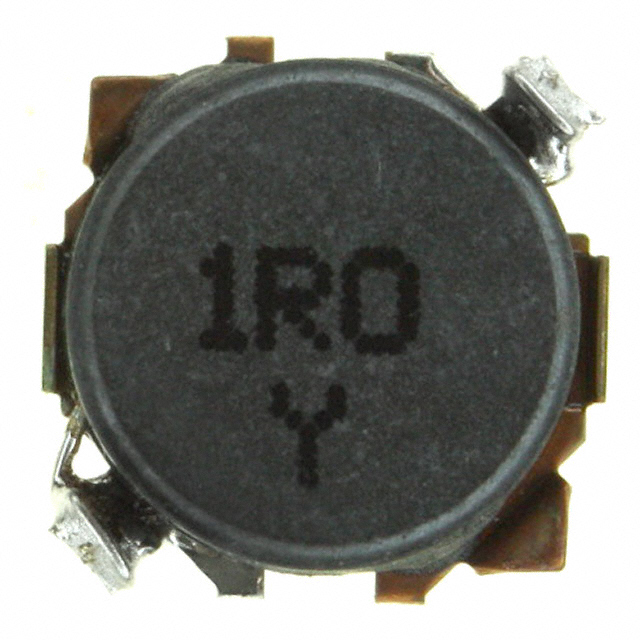

 Panasonic Industrial Automation Sales | 100 kHz | 1 µH | Wirewound | 0.236 in | 6 mm | 0.236 in | 6 mm | Shielded | Nonstandard | 30 % | 27 mOhm | 0.063 in | 1.6 mm | 2.5 A | Surface Mount | 2.5 A |
 Panasonic Industrial Automation Sales | 100 kHz | 47 µH | Wirewound | 0.236 in | 6 mm | 0.236 in | 6 mm | Shielded | Nonstandard | 20 % | 610 mOhm | 0.063 in | 1.6 mm | 480 mA | Surface Mount | 400 mA |
