09407030 Series

Manufacturer: HARTING

Catalog

3A HPR ANGLED BULKHEAD HOUSING, SCREW LOCKING, EPOXY

Part	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Lock Location	Housing Finish	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Housing Color	Style	Connector Type	Size

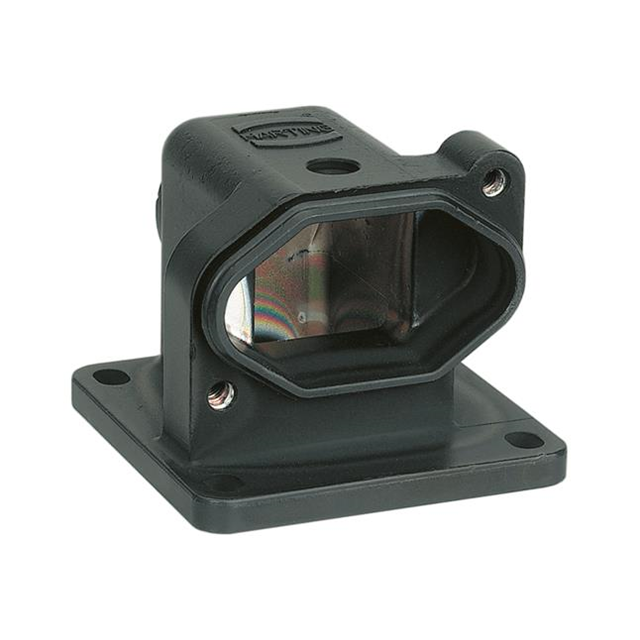

HARTING 09407030950	2.008 "	1.634 in	51 mm	51 mm	41.5 mm	2.008 "	Screw Locks on Hood	Powder Coated	125 °C	-40 C	Zinc Die Cast	Black	Side Entry	Base - Panel Mount 90°	3 A

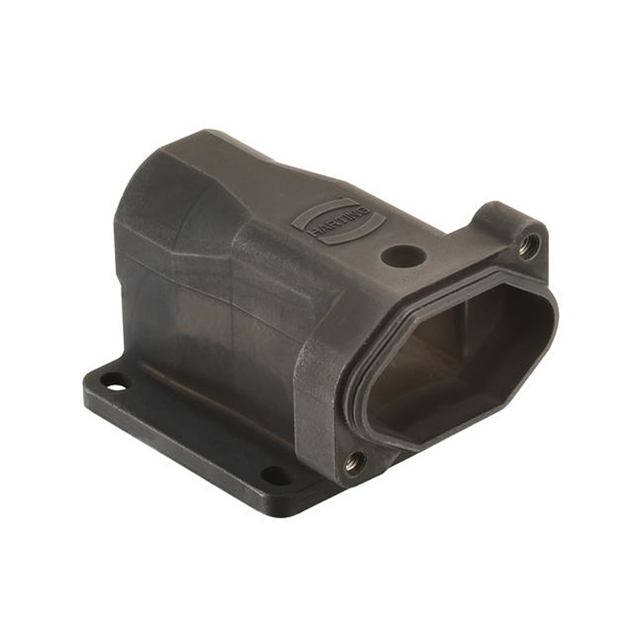

HARTING 09407030951							Screw Locks on Hood	Powder Coated	125 °C	-40 C	Zinc Die Cast	Black	Side Entry	Base - Panel Mount 90°	3 A
HARTING 09407030301							Screw Locks on Hood	Powder Coated	125 °C	-40 C	Zinc Die Cast	Black	Bottom Entry	Base - Panel Mount	3 A
HARTING 09407030311							Screw Locks on Hood	Powder Coated	125 °C	-40 C	Zinc Die Cast	Black	Bottom Entry	Base - Panel Mount	3 A

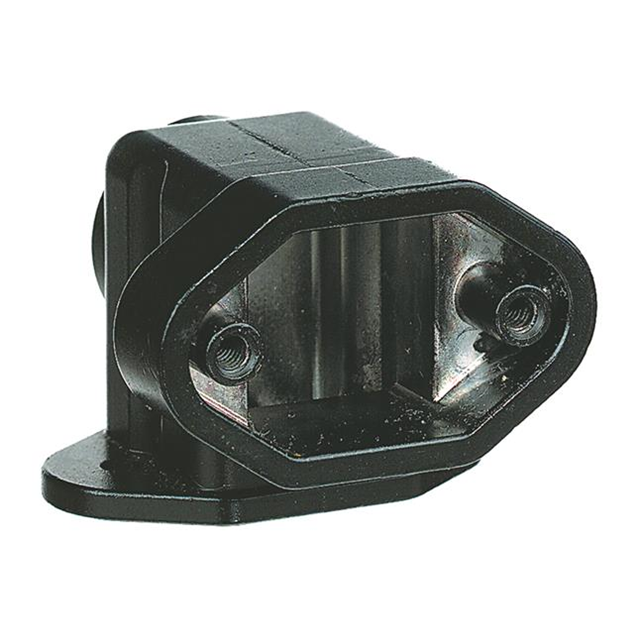

HARTING 09407030902	1.083 in	1.354 in	27.5 mm	45.4 mm	34.4 mm	1.787 in	Screw Locks on Hood	Powder Coated	125 °C	-40 C	Zinc Die Cast	Black	Side Entry	Base - Panel Mount 90°	3 A
