846-098 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 98POS 0.125

...

Part	Material - Insulation	Termination Rows [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Pitch	Pitch	Card Thickness [Max]	Card Thickness [Min]	Mounting Type	Termination	Flange Feature	Contact Material	Color	Number of Positions	Contact Finish	Number of Positions/Bay/Row	Read Out	Number of Rows [custom]	Contact Type	Gender	Contact Finish Thickness	Contact Finish Thickness	Features	Card Type	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 846-098-556-808	Diallyl Phthalate (DAP)	2	125 °C	-40 C	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Board Edge Straddle Mount	Solder	4-40 Threaded Insert Top Mount Opening	Copper Alloy	Green	98	Gold	49	Dual	2	Cantilever	Female	0.25 Ám	10 Áin	Card Extender	Non Specified - Dual Edge
EDAC Inc. 846-098-520-202	Diallyl Phthalate (DAP)	2	125 °C	-40 C	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Solder	Flush Mount Top Opening Unthreaded	Copper Alloy	Green	98	Gold	49	Dual	2	Cantilever	Female	0.25 Ám	10 Áin		Non Specified - Dual Edge	3.25 mm	0.128 "
EDAC Inc. 846-098-560-203	Diallyl Phthalate (DAP)	2	125 °C	-40 C	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Board Edge Straddle Mount	Solder	Floating Bobbin Flush Mount	Copper Alloy	Green	98	Gold	49	Dual	2	Cantilever	Female	0.25 Ám	10 Áin	Card Extender	Non Specified - Dual Edge	2.95 mm	0.116 "
EDAC Inc. 846-098-559-808	Diallyl Phthalate (DAP)	2	125 °C	-40 C	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Right Angle Through Hole	Solder	4-40 Threaded Insert Top Mount Opening	Copper Alloy	Green	98	Gold	49	Dual	2	Cantilever	Female	0.25 Ám	10 Áin		Non Specified - Dual Edge
EDAC Inc. 846-098-500-207	Diallyl Phthalate (DAP)	2	125 °C	-40 C	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Solder Eyelet(s)	Flush Mount M3 Threaded Insert Top Opening	Copper Alloy	Green	98	Gold	49	Dual	2	Cantilever	Female	0.25 Ám	10 Áin		Non Specified - Dual Edge
EDAC Inc. 846-098-558-207	Diallyl Phthalate (DAP)	2	125 °C	-40 C	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Right Angle Through Hole	Solder	Flush Mount M3 Threaded Insert Top Opening	Copper Alloy	Green	98	Gold	49	Dual	2	Cantilever	Female	0.25 Ám	10 Áin		Non Specified - Dual Edge

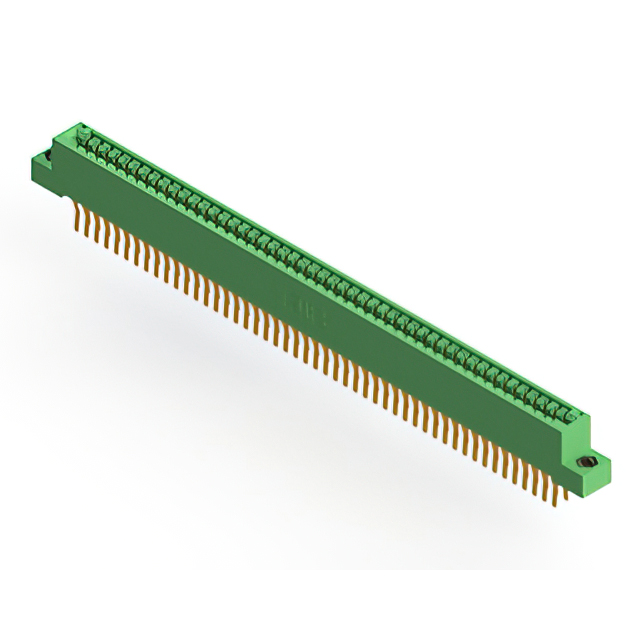

EDAC Inc. 846-098-560-207	Diallyl Phthalate (DAP)	2	125 °C	-40 C	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Board Edge Straddle Mount	Solder	Flush Mount M3 Threaded Insert Top Opening	Copper Alloy	Green	98	Gold	49	Dual	2	Cantilever	Female	0.25 Ám	10 Áin	Card Extender	Non Specified - Dual Edge
EDAC Inc. 846-098-541-208	Diallyl Phthalate (DAP)	2	125 °C	-40 C	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Wire Wrap	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	Green	98	Gold	49	Dual	2	Cantilever	Female	0.25 Ám	10 Áin		Non Specified - Dual Edge
EDAC Inc. 846-098-526-812	Diallyl Phthalate (DAP)	2	125 °C	-40 C	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Solder	Side Mount Opening Unthreaded	Copper Alloy	Green	98	Gold	49	Dual	2	Cantilever	Female	0.25 Ám	10 Áin		Non Specified - Dual Edge	3.25 mm	0.128 "
EDAC Inc. 846-098-559-802	Diallyl Phthalate (DAP)	2	125 °C	-40 C	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Right Angle Through Hole	Solder		Copper Alloy	Green	98	Gold	49	Dual	2	Cantilever	Female	0.25 Ám	10 Áin		Non Specified - Dual Edge	3.25 mm	0.128 "
