2339800 Series

Catalog

BOARD CONNECTOR, 2 ROW(S), MALE, RIGHT ANGLE, SOLDER TERMINAL

Part	Contact Type	Contact Shape	Number of Positions Loaded	Row Spacing - Mating	Row Spacing - Mating	Current Rating (Amps)	Shrouding	Number of Rows	Number of Positions	Contact Finish - Post	Style	Connector Type	Termination	Fastening Type	Voltage Rating	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Insulation Color	Contact Material	Insulation Material	Contact Length - Post	Contact Length - Post	Features	Insulation Height	Insulation Height
TE Connectivity Raychem Cable Protection 2339800-2	Tab	Rectangular	All	0.307 in	7.8 mm	3 A	Shrouded - 4 Wall	2	12	Tin	Board to Cable/Wire	Header	Solder	Latch Holder	60 VDC	0.071 in	1.8 mm	-40 °C	105 ░C	Through Hole Right Angle	White
TE Connectivity Raychem Cable Protection 2339800-9	Tab	Square	All	0.307 in	7.8 mm	3 A	Shrouded - 4 Wall	2	12	Tin	Board to Cable/Wire	Header	Solder	Latch Holder	60 VDC			-40 °C	105 ░C	Through Hole Right Angle	Blue	Copper Alloy	Glass Filled Nylon 4T Polyamide (PA4T)	0.118 in	3 mm	Board Guide	0.89 in	22.61 mm

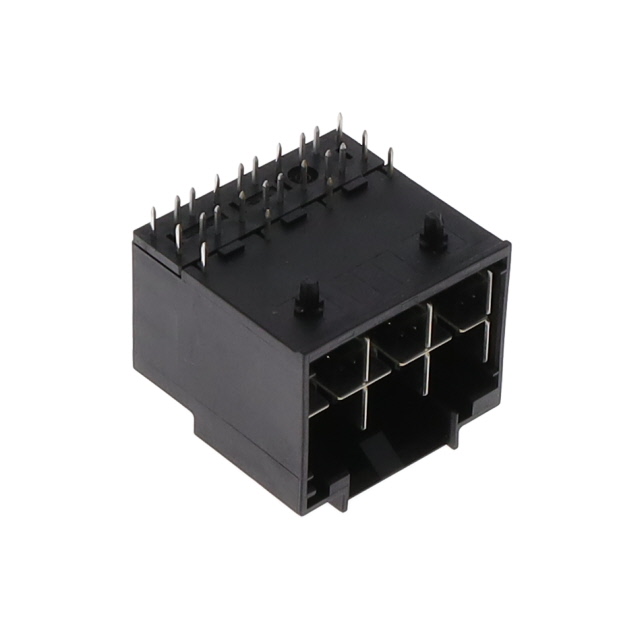

TE Connectivity Raychem Cable Protection 2339800-1	Tab	Square	All	0.307 in	7.8 mm	3 A	Shrouded - 4 Wall	2	12	Tin	Board to Cable/Wire	Header	Solder	Latch Holder	60 VDC			-40 °C	105 ░C	Through Hole Right Angle	Black	Copper Alloy	Glass Filled Nylon 4T Polyamide (PA4T)	0.118 in	3 mm	Board Guide	0.89 in	22.61 mm
