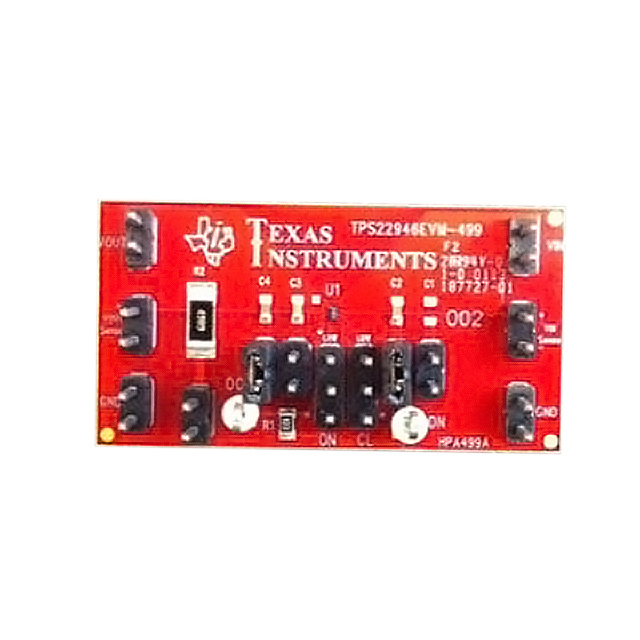

TPS22946 Series
Manufacturer: Texas Instruments
Beta
⌘K
5.5-V, 0.15-A, 400-MΩ LOAD SWITCH WITH SELECTABLE CURRENT LIMIT
| Part | Interface | Operating Temperature [Min] | Operating Temperature [Max] | Fault Protection | Mounting Type | Package / Case | Features | Voltage - Load [Max] | Voltage - Load [Min] | Switch Type | Ratio - Input:Output [custom] | Voltage - Supply (Vcc/Vdd) | Rds On (Typ) | Supplier Device Package | Output Type | Input Type | Output Configuration | Number of Outputs | Embedded | Utilized IC / Part | Function | Type | Supplied Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | On/Off | -40 °C | 125 ¯C | Current Limiting (Fixed) Over Temperature | Surface Mount | 6-XFBGA DSBGA | Auto Restart | 5.5 V | 1.62 V | General Purpose | 1:1 | 300 mOhm | 6-DSBGA | P-Channel | Non-Inverting | High Side | 1 | ||||||
 Texas Instruments | TPS22946 | Power Distribution Switch (Load Switch) | Power Management | Board(s) |
