68448 Series

Catalog

CONN HEADER VERT 10POS 2.54MM

Part	Contact Shape	Fastening Type	Current Rating (Amps)	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Number of Rows	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Overall Contact Length	Overall Contact Length	Connector Type	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Number of Positions	Shrouding	Contact Material	Mounting Type	Contact Type	Termination	Contact Length - Mating [x]	Contact Length - Mating	Contact Finish - Post	Contact Length - Mating	Contact Length - Post	Contact Length - Post	Contact Length - Mating [x]
Amphenol ICC (FCI) 68448-218HLF	Square	Push-Pull	3 A	Gold or Gold GXT™	-65 ░C	130 °C	Black	1	0.1 in	2.54 mm	30 Áin	0.76 Ám	0.12 in	3.05 mm	0.45 "	11.43 mm	Header	UL94 V-0	0.1 in	2.54 mm	9	10	Unshrouded	Phosphor Bronze	Through Hole	Male Pin	Solder	0.23 in	5.84 mm

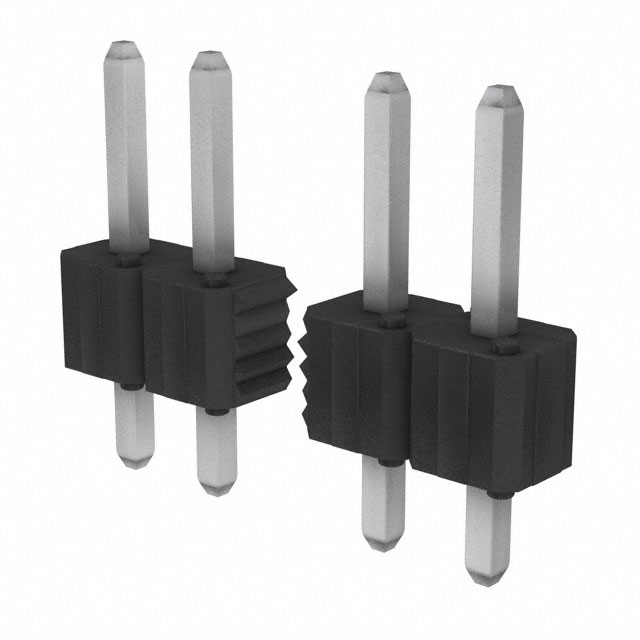

Amphenol ICC (FCI) 68448-215HLF	Square	Push-Pull	3 A		-65 ░C	130 °C	Black	1	0.1 in	2.54 mm	100 çin	2.54 çm	0.095 in	2.41 mm	0.373 in	9.47 mm	Header	UL94 V-0	0.1 in	2.54 mm	30	36	Unshrouded	Phosphor Bronze	Through Hole	Male Pin	Solder		4.52 mm	Tin	0.178 in
Amphenol ICC (FCI) 68448-041HLF	Square	Push-Pull	3 A	Gold or Gold GXT™	-65 ░C	130 °C	Black	1	0.1 in	2.54 mm	30 Áin	0.76 Ám			0.513 "	13.03 mm	Header	UL94 V-0	0.1 in	2.54 mm	30	12	Unshrouded	Phosphor Bronze	Through Hole	Male Pin	Solder	0.23 in	5.84 mm			0.183 in	4.65 mm
Amphenol ICC (FCI) 68448-243HLF	Square	Push-Pull	3 A		-65 ░C	130 °C	Black	1	0.1 in	2.54 mm	100 çin	2.54 çm	0.073 "		0.383 in	9.72 mm	Header	UL94 V-0	0.1 in	2.54 mm	2		Unshrouded	Phosphor Bronze	Through Hole	Male Pin	Solder		5.33 mm	Tin	0.21 in		1.85 mm
Amphenol ICC (FCI) 68448-103HLF	Square	Push-Pull	3 A	Gold or Gold GXT™	-65 ░C	130 °C	Black	1	0.1 in	2.54 mm	30 Áin	0.76 Ám	0.12 in	3.05 mm	0.45 "	11.43 mm	Header	UL94 V-0	0.1 in	2.54 mm	3		Unshrouded	Phosphor Bronze	Through Hole	Male Pin	Solder	0.23 in	5.84 mm
Amphenol ICC (FCI) 68448-043HLF	Square	Push-Pull	3 A	Gold or Gold GXT™	-65 ░C	130 °C	Black	1	0.1 in	2.54 mm	50 µin	1.27 µm	0.095 in	2.41 mm			Header	UL94 V-0	0.1 in	2.54 mm	30		Unshrouded	Phosphor Bronze	Through Hole	Male Pin	Solder	0.23 in	5.84 mm
Amphenol ICC (FCI) 68448-245HLF		Push-Pull			-65 ░C	130 °C	Black	1									Header	UL94 V-0	0.1 in	2.54 mm			Unshrouded	Phosphor Bronze	Through Hole	Male Pin	Solder
Amphenol ICC (FCI) 68448-009HLF	Square	Push-Pull	3 A		-65 ░C	130 °C	Black	1	0.1 in	2.54 mm	100 çin	2.54 çm	0.095 in	2.41 mm			Header	UL94 V-0	0.1 in	2.54 mm	30		Unshrouded	Phosphor Bronze	Through Hole	Male Pin	Solder	0.23 in	5.84 mm	Tin
Amphenol ICC (FCI) 68448-242HLF	Square	Push-Pull	3 A		-65 ░C	130 °C	Black	1	0.1 in	2.54 mm	100 çin	2.54 çm	0.12 in	3.05 mm	0.538 "	13.67 mm	Header	UL94 V-0	0.1 in	2.54 mm	2		Unshrouded	Phosphor Bronze	Through Hole	Male Pin	Solder	0.318 "		Tin				8.08 mm
Amphenol ICC (FCI) 68448-214H	Square	Push-Pull					Black	1	0.1 in	2.54 mm	100 çin	2.54 çm	0.095 in	2.41 mm	0.373 in	9.47 mm	Header	UL94 V-0	0.1 in	2.54 mm	29	36	Unshrouded	Phosphor Bronze	Through Hole	Male Pin	Solder		4.52 mm		0.178 in
