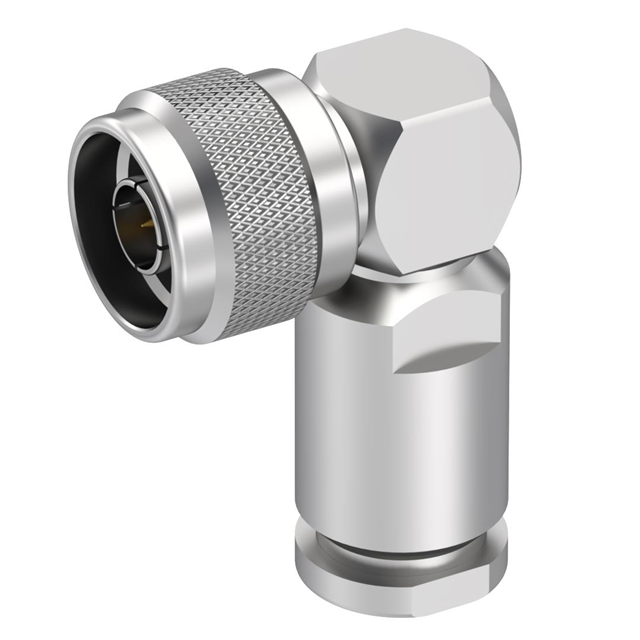

R16116 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
N M RA CL 10+11/50 C50
| Part | Voltage Rating | Mating Cycles | Body Material | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Plating | Contact Termination | Center Contact Material | Number of Ports | Cable Group | Connector Style | Impedance | Shield Termination | Fastening Type | Mounting Type | Connector Type | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 1400 V | 500 | Brass | Polytetrafluoroethylene (PTFE) | 155 C | -55 C | Gold | Solder | Brass | 1 | 214 393 RG-213 | N Type | 50 Ohms | Clamp | Threaded | Free Hanging (In-Line) Right Angle | Plug Male Pin | 11 GHz |
