89847 Series

Catalog

CONN RCPT 8POS 0.1 GOLD PCB

Part	Mounting Type	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Insulation Height	Insulation Height	Applications	Termination	Contact Finish - Mating	Contact Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Connector Type	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Contact Finish - Post	Number of Positions Loaded	Fastening Type	Number of Rows
Amphenol ICC (FCI) 89847-304HLF	Through Hole	Square	30 Áin	0.76 Ám	Gray	0.335 "	8.51 mm	Automotive General Purpose Industrial Telecommunications	Solder	Gold	Phosphor Bronze	2.54 mm	0.1 in	8	0.102 in	2.6 mm	UL94 V-0	Receptacle	0.1 in	2.54 mm	2 çm	78.7 çin	Female Socket	Tin	All	Push-Pull	2
Amphenol ICC (FCI) 89847-334	Through Hole	Square	30 Áin	0.76 Ám	Blue	0.335 "	8.51 mm	Automotive General Purpose Industrial Telecommunications	Solder	Gold	Phosphor Bronze	2.54 mm	0.1 in	68	0.102 in	2.6 mm	UL94 V-0	Receptacle	0.1 in	2.54 mm	2 çm	78.7 çin	Female Socket	Tin	All	Push-Pull	2

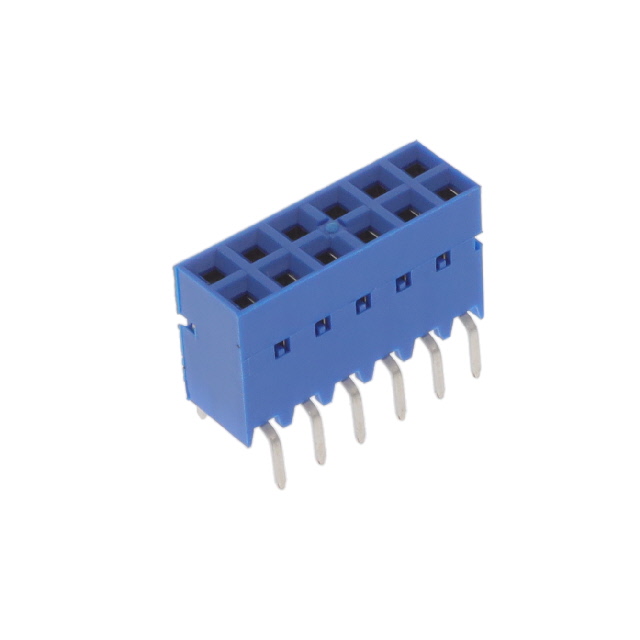

Amphenol ICC (FCI) 89847-306LF	Through Hole	Square	30 Áin	0.76 Ám	Blue	0.335 "	8.51 mm	Automotive General Purpose Industrial Telecommunications	Solder	Gold	Phosphor Bronze	2.54 mm	0.1 in	12	0.102 in	2.6 mm	UL94 V-0	Receptacle	0.1 in	2.54 mm	2 çm	78.7 çin	Female Socket	Tin	All	Push-Pull	2
Amphenol ICC (FCI) 89847-316LF	Through Hole	Square	30 Áin	0.76 Ám	Blue	0.335 "	8.51 mm	Automotive General Purpose Industrial Telecommunications	Solder	Gold	Phosphor Bronze	2.54 mm	0.1 in		0.102 in	2.6 mm	UL94 V-0	Receptacle	0.1 in	2.54 mm	2 çm	78.7 çin	Female Socket	Tin	All	Push-Pull	2
Amphenol ICC (FCI) 89847-325LF	Through Hole	Square	30 Áin	0.76 Ám	Blue	0.335 "	8.51 mm	Automotive General Purpose Industrial Telecommunications	Solder	Gold	Phosphor Bronze	2.54 mm	0.1 in	50	0.102 in	2.6 mm	UL94 V-0	Receptacle	0.1 in	2.54 mm	2 çm	78.7 çin	Female Socket	Tin	All	Push-Pull	2
Amphenol ICC (FCI) 89847-405LF	Through Hole	Square	78.7 µin	2 µm	Blue	0.335 "	8.51 mm	Automotive General Purpose Industrial Telecommunications	Solder		Phosphor Bronze	2.54 mm	0.1 in	10	0.102 in	2.6 mm	UL94 V-0	Receptacle	0.1 in	2.54 mm	2 çm	78.7 çin	Female Socket	Tin	All	Push-Pull	2
Amphenol ICC (FCI) 89847-313LF	Through Hole	Square	30 Áin	0.76 Ám	Blue	0.335 "	8.51 mm	Automotive General Purpose Industrial Telecommunications	Solder	Gold	Phosphor Bronze	2.54 mm	0.1 in	26	0.102 in	2.6 mm	UL94 V-0	Receptacle	0.1 in	2.54 mm	2 çm	78.7 çin	Female Socket	Tin	All	Push-Pull	2
Amphenol ICC (FCI) 89847-315	Through Hole	Square	30 Áin	0.76 Ám	Blue	0.335 "	8.51 mm	Automotive General Purpose Industrial Telecommunications	Solder	Gold	Phosphor Bronze	2.54 mm	0.1 in	30	0.102 in	2.6 mm	UL94 V-0	Receptacle	0.1 in	2.54 mm	2 çm	78.7 çin	Female Socket	Tin	All	Push-Pull	2
Amphenol ICC (FCI) 89847-406LF	Through Hole	Square	78.7 µin	2 µm	Blue	0.335 "	8.51 mm	Automotive General Purpose Industrial Telecommunications	Solder		Phosphor Bronze	2.54 mm	0.1 in	12	0.102 in	2.6 mm	UL94 V-0	Receptacle	0.1 in	2.54 mm	2 çm	78.7 çin	Female Socket	Tin	All	Push-Pull	2
Amphenol ICC (FCI) 89847-409LF	Through Hole	Square	78.7 µin	2 µm	Blue	0.335 "	8.51 mm	Automotive General Purpose Industrial Telecommunications	Solder		Phosphor Bronze	2.54 mm	0.1 in	18	0.102 in	2.6 mm	UL94 V-0	Receptacle	0.1 in	2.54 mm	2 çm	78.7 çin	Female Socket	Tin	All	Push-Pull	2
