8619 Series
Manufacturer: Belden Inc.
Beta
⌘K

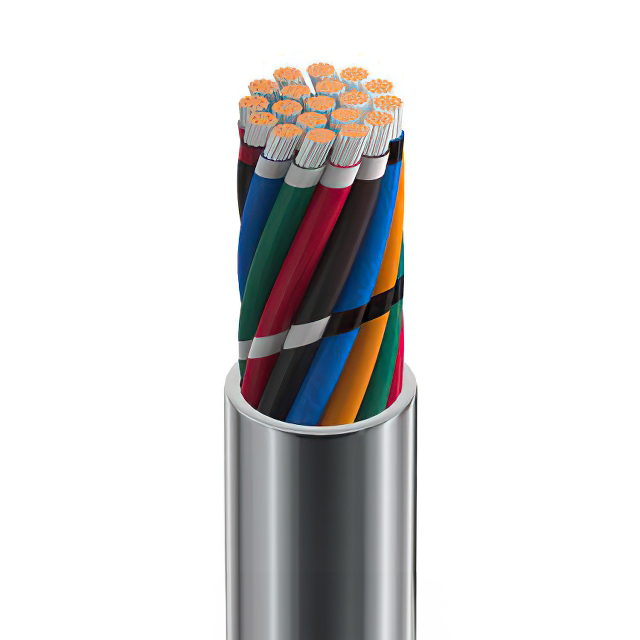

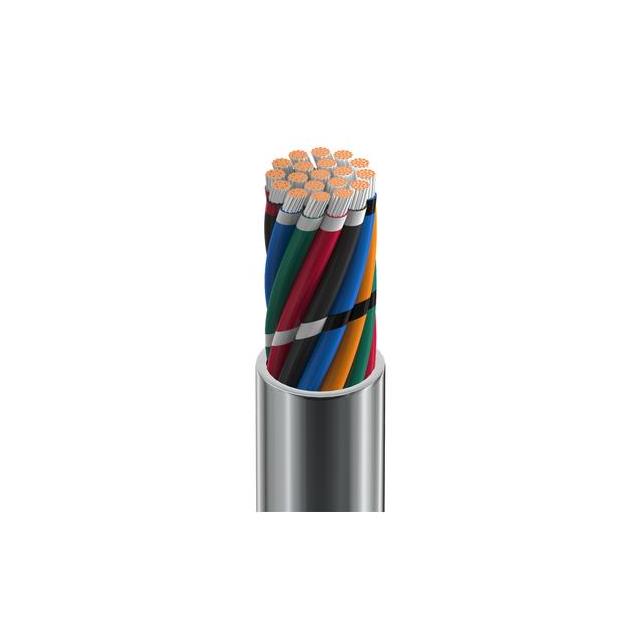

CABLE 19COND 18AWG CHROME
| Part | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness [custom] | Ratings | Length | Length | Number of Conductors | Wire Gauge | Conductor Insulation | Cable Type | Jacket (Insulation) Material | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [custom] | Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Usage | Jacket Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 1.143 mm | 0.045 in | UL Style 2598 | 152.4 m | 500 ft | 19 | 18 AWG | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Copper Tinned | 0.49 " | 12.45 mm | 30 AWG | 19 | 300 VDC | -20 ░C | 60 °C | Audio Control Instrumentation | Chrome |
Belden Inc. | 1.143 mm | 0.045 in | UL Style 2598 | 19 | 18 AWG | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Copper Tinned | 0.49 " | 12.45 mm | 30 AWG | 19 | 300 VDC | -20 ░C | 60 °C | Audio Control Instrumentation | Chrome | ||
 Belden Inc. | 1.143 mm | 0.045 in | UL Style 2598 | 304.8 m | 1000 ft | 19 | 18 AWG | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Copper Tinned | 0.49 " | 12.45 mm | 30 AWG | 19 | 300 VDC | -20 ░C | 60 °C | Audio Control Instrumentation | Chrome |
