GRS-4023 Series
Manufacturer: CW Industries
Beta
⌘K

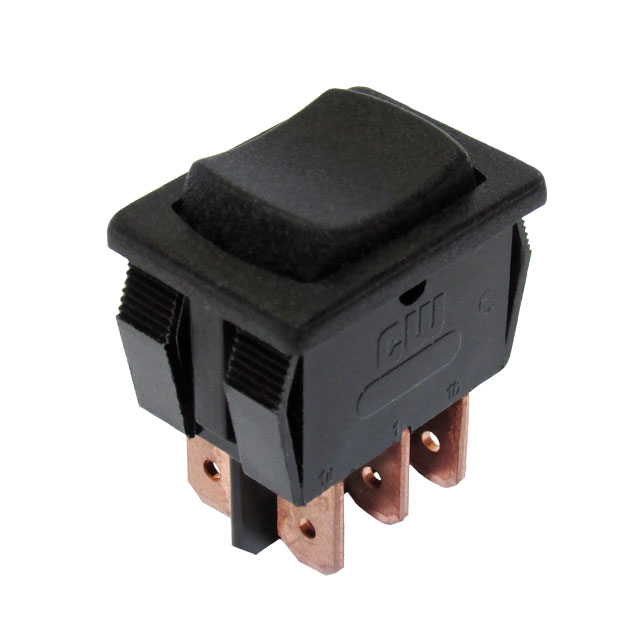

SWITCH ROCKER DPDT 8A 125V
| Part | Electrical Life | Mechanical Life | Features | Voltage Rating - AC | Circuit | Color - Actuator/Cap | Actuator Type | Actuator Marking | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Switch Function | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CW Industries | 25000 Steps | 25000 Steps | Terminal Barriers | 125 V | DPDT | Black | Concave (Curved) | No Marking | Quick Connect | -20 ░C | 105 ░C | Panel Mount Snap-In | 12.9 mm | 19.2 mm | Mom-Off-Mom | 8 A |
 CW Industries | 25000 Steps | 25000 Steps | 125 V | DPDT | Black | Concave (Curved) | No Marking | Quick Connect | -20 ░C | 105 ░C | Panel Mount Snap-In | 12.9 mm | 19.2 mm | Mom-Off-Mom | 13 A | |

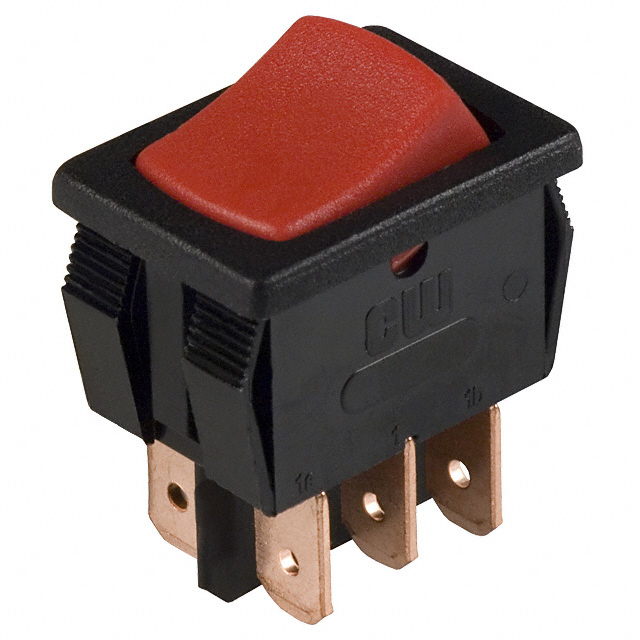

 CW Industries | 25000 Steps | 100000 Cycles | 125 V | DPDT | Red | Concave (Curved) | No Marking | Quick Connect | -20 ░C | 105 ░C | Panel Mount Snap-In | 12.9 mm | 19.2 mm | On-Off-On | 13 A | |
 CW Industries | 25000 Steps | 25000 Steps | Terminal Barriers | 125 V | DPDT | Black | Concave (Curved) | No Marking | Quick Connect | -20 ░C | 105 ░C | Panel Mount Snap-In | 12.9 mm | 19.2 mm | On-Off-On | 13 A |
 CW Industries | 25000 Steps | 25000 Steps | Terminal Barriers | 125 V | DPDT | Black | Concave (Curved) | No Marking | Quick Connect | -20 ░C | 105 ░C | Panel Mount Snap-In | 12.9 mm | 19.2 mm | Mom-Off-Mom | 13 A |
 CW Industries | 25000 Steps | 25000 Steps | Terminal Barriers | 125 V | DPDT | Black | Concave (Curved) | No Marking | Quick Connect | -20 ░C | 105 ░C | Panel Mount Snap-In | 12.9 mm | 19.2 mm | On-Off-Mom | 13 A |
 CW Industries | 25000 Steps | 25000 Steps | Terminal Barriers | 125 V | DPDT | Black | Concave (Curved) | No Marking | Quick Connect - 0.110" (2.8mm) | -20 ░C | 105 ░C | Panel Mount Snap-In | 12.9 mm | 19.2 mm | On-Off-On | 13 A |
 CW Industries | 25000 Steps | 25000 Steps | Terminal Barriers | 125 V | DPDT | Black | Concave (Curved) | Bump | Quick Connect | -20 ░C | 105 ░C | Panel Mount Snap-In | 12.9 mm | 19.2 mm | Mom-Off-Mom | 13 A |
 CW Industries | 25000 Steps | 100000 Cycles | Terminal Barriers | 125 V | DPDT | Black | Concave (Curved) | No Marking | Quick Connect | -20 ░C | 105 ░C | Panel Mount Snap-In | 12.9 mm | 19.2 mm | On-Off-On | 13 A |

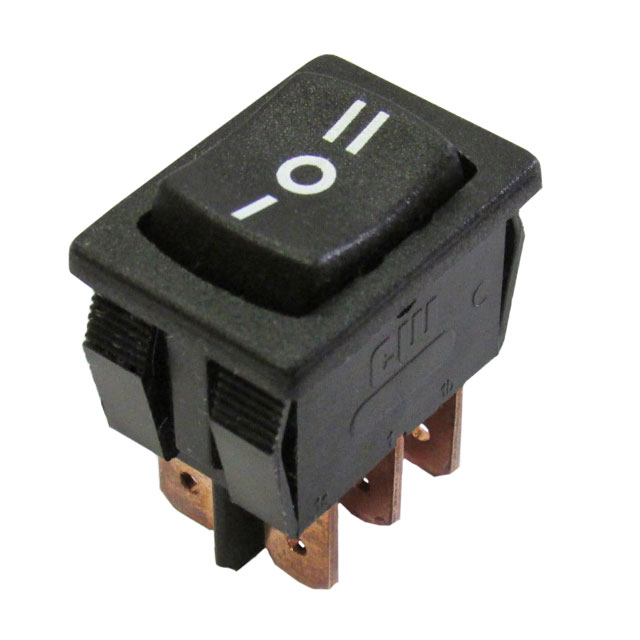

 CW Industries | 25000 Steps | 25000 Steps | Terminal Barriers | 125 V | DPDT | Black | Concave (Curved) | I O II | Quick Connect | -20 ░C | 105 ░C | Panel Mount Snap-In | 12.9 mm | 19.2 mm | On-Off-Mom | 13 A |
