52125 Series
Manufacturer: CNC Tech
Beta
⌘K
WIRE-TO BOARD HEADER, 2.5MM, 5 C
| Part | Connector Type | Insulation Color | Contact Material | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions Loaded | Current Rating (Amps) | Insulation Height | Insulation Height | Pitch - Mating | Pitch - Mating | Number of Positions | Insulation Material | Contact Shape | Contact Length - Post | Contact Length - Post | Voltage Rating | Material Flammability Rating | Number of Rows | Mounting Type | Shrouding | Contact Finish - Post | Termination | Style | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

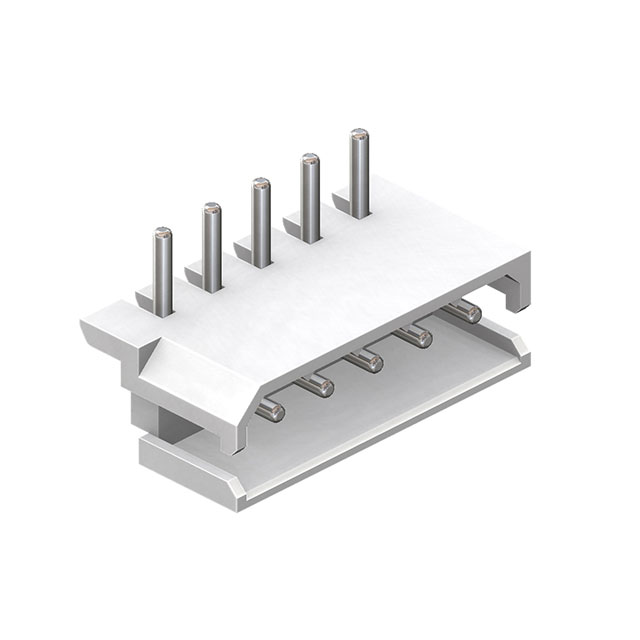

 CNC Tech | Header | Beige | Brass | Male Pin | 85 °C | -40 C | All | 3 A | 4.9 mm | 0.193 " | 2.5 mm | 0.098 in | 5 | Nylon 6/6 Polyamide (PA66) | Circular | 0.138 in | 3.5 mm | 250 V | UL94 V-0 | 1 | Right Angle Through Hole | Shrouded - 4 Wall | Tin | Solder | Board to Cable/Wire | Detent Lock |

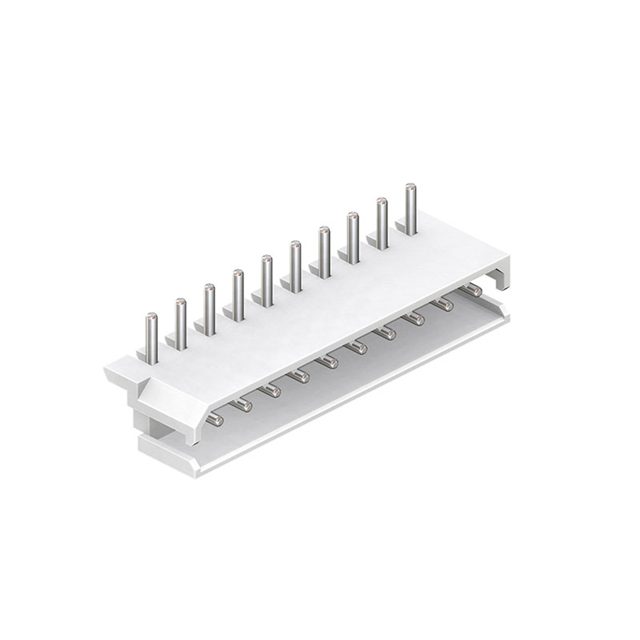

 CNC Tech | Header | Beige | Brass | Male Pin | 85 °C | -40 C | All | 3 A | 4.9 mm | 0.193 " | 2.5 mm | 0.098 in | 10 | Nylon 6/6 Polyamide (PA66) | Circular | 0.138 in | 3.5 mm | 250 V | UL94 V-0 | 1 | Right Angle Through Hole | Shrouded - 4 Wall | Tin | Solder | Board to Cable/Wire | Detent Lock |

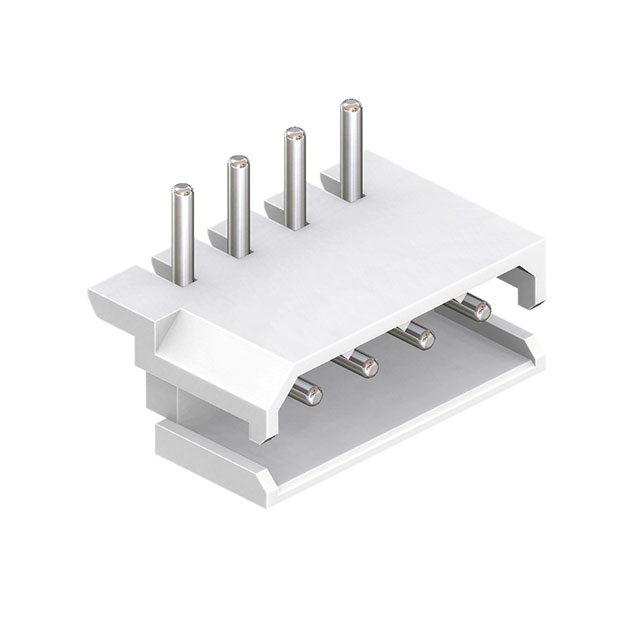

 CNC Tech | Header | Beige | Brass | Male Pin | 85 °C | -40 C | All | 3 A | 4.9 mm | 0.193 " | 2.5 mm | 0.098 in | 4 | Nylon 6/6 Polyamide (PA66) | Circular | 0.138 in | 3.5 mm | 250 V | UL94 V-0 | 1 | Right Angle Through Hole | Shrouded - 4 Wall | Tin | Solder | Board to Cable/Wire | Detent Lock |

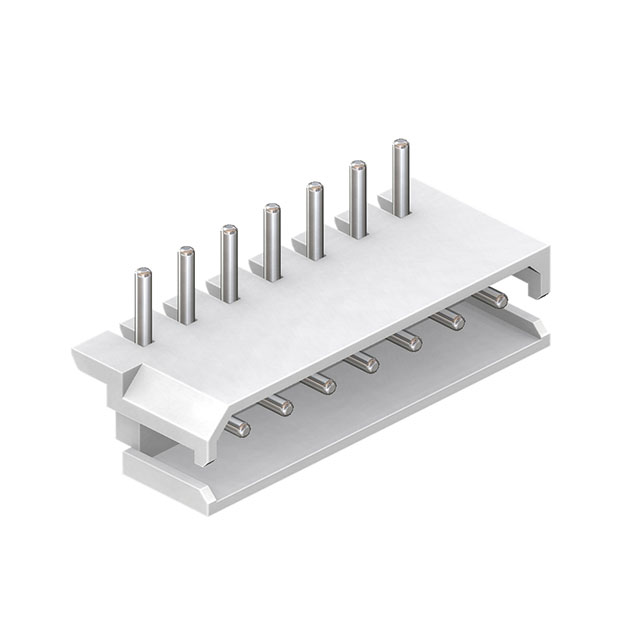

 CNC Tech | Header | Beige | Brass | Male Pin | 85 °C | -40 C | All | 3 A | 4.9 mm | 0.193 " | 2.5 mm | 0.098 in | 7 | Nylon 6/6 Polyamide (PA66) | Circular | 0.138 in | 3.5 mm | 250 V | UL94 V-0 | 1 | Right Angle Through Hole | Shrouded - 4 Wall | Tin | Solder | Board to Cable/Wire | Detent Lock |
