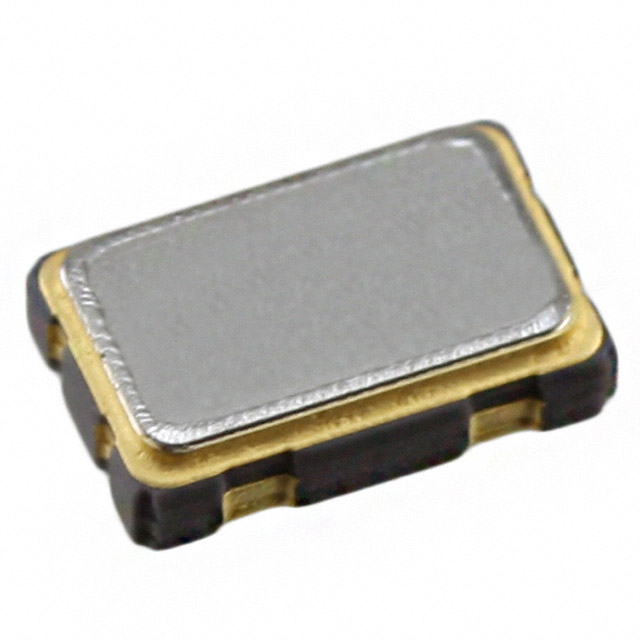

ECS-3961/3963 Series

Manufacturer: ECS Inc.

Catalog

STANDARD CLOCK OSCILLATORS 40.000MHZ 5.0VOLT 100 PPM -55C +125C

Part	Frequency Stability	Package / Case	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max)	Base Resonator [custom]	Type	Output	Function	Current - Supply (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Frequency	Voltage - Supply
ECS Inc. ECS-3961-400-AU-TR	100 ppm	4-SMD No Lead	Surface Mount	0.051 in	1.3 mm	Crystal	XO (Standard)	HCMOS	Enable/Disable	35 mA	-55 C	125 °C	3.2 mm	0.126 in	5 mm	0.197 in	40 MHz
ECS Inc. ECS-3963-143-BN-TR	50 ppm	4-SMD No Lead	Surface Mount	0.051 in	1.3 mm	Crystal	XO (Standard)	HCMOS	Enable/Disable	10 mA	-40 C	85 °C	3.2 mm	0.126 in	5 mm	0.197 in	14.31818 MHz	3.3 V
ECS Inc. ECS-3963-1250-BN-TR	50 ppm	4-SMD No Lead	Surface Mount	0.051 in	1.3 mm	Crystal	XO (Standard)	HCMOS	Enable/Disable	35 mA	-40 C	85 °C	3.2 mm	0.126 in	5 mm	0.197 in	125 MHz	3.3 V
ECS Inc. ECS-3963-200-BN-TR	50 ppm	4-SMD No Lead	Surface Mount	0.051 in	1.3 mm	Crystal	XO (Standard)	HCMOS	Enable/Disable	10 mA	-40 C	85 °C	3.2 mm	0.126 in	5 mm	0.197 in	20 MHz	3.3 V
ECS Inc. ECS-3963-1000-BN-TR	50 ppm	4-SMD No Lead	Surface Mount	0.051 in	1.3 mm	Crystal	XO (Standard)	HCMOS	Enable/Disable	35 mA	-40 C	85 °C	3.2 mm	0.126 in	5 mm	0.197 in	100 MHz	3.3 V
