317-027 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 54POS 0.156

Part	Material - Insulation	Number of Rows [custom]	Termination	Number of Positions	Contact Finish	Mounting Type	Gender	Color	Pitch	Pitch	Card Thickness [Max]	Card Thickness [Min]	Contact Type	Contact Material	Card Type	Flange Feature [diameter]	Flange Feature [diameter]	Read Out	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions/Bay/Row	Flange Feature	Features
EDAC Inc. 317-027-541-604	Diallyl Phthalate (DAP)	2	Wire Wrap	54	Gold	Through Hole	Female	Green	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Copper Alloy	Non Specified - Dual Edge	0.156 "	3.96 mm	Single	0.25 Ám	10 Áin	-65 ░C	125 °C	27
EDAC Inc. 317-027-541-608	Diallyl Phthalate (DAP)	2	Wire Wrap	54	Gold	Through Hole	Female	Green	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Copper Alloy	Non Specified - Dual Edge			Single	0.25 Ám	10 Áin	-65 ░C	125 °C	27	4-40 Threaded Insert Top Mount Opening

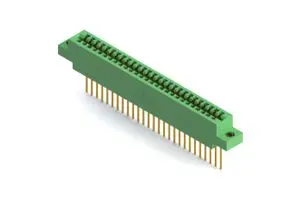

EDAC Inc. 317-027-541-607	Diallyl Phthalate (DAP)	2	Wire Wrap	54	Gold	Through Hole	Female	Green	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Copper Alloy	Non Specified - Dual Edge			Single	0.25 Ám	10 Áin	-65 ░C	125 °C	27	M3 Threaded Insert Top Mount Opening

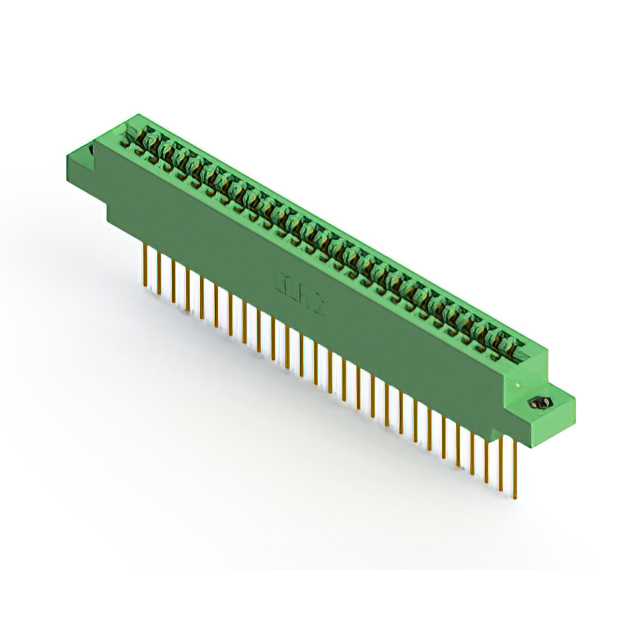

EDAC Inc. 317-027-541-678	Diallyl Phthalate (DAP)	2	Wire Wrap	54	Gold	Through Hole	Female	Green	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Copper Alloy	Non Specified - Dual Edge			Single	0.25 Ám	10 Áin	-65 ░C	125 °C	27	4-40 Threaded Insert Top Mount Opening	Card Guides
