8163 Series
Manufacturer: Belden Inc.
Beta
⌘K

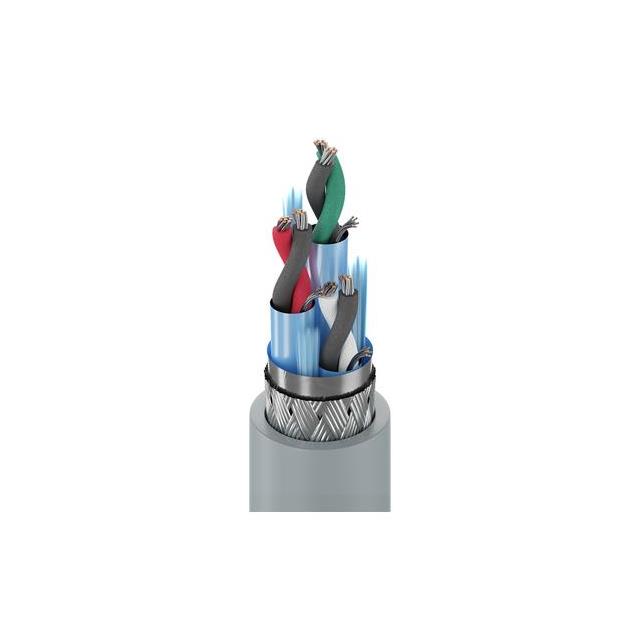

MULTI-PAIR 6COND 24AWG
| Part | Shield Material | Shield Coverage | Conductor Material | Operating Temperature [Max] | Operating Temperature [Min] | Ratings | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Usage | Wire Gauge | Features | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Voltage | Cable Type | Shield Type | Jacket Color | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Length | Length | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | Copper Tinned | 60 °C | -40 C | UL Style 2493 | 7 | 32 AWG | Poly-Vinyl Chloride (PVC) | Computer | 24 AWG | Drain Wire | 1.219 mm | 0.048 in | 300 VDC | Multi-Pair | Braid Foil | Chrome | Foam Polyethylene (FPE) | 0.359 in | 9.12 mm | 6 | ||||
Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | Copper Tinned | 60 °C | -40 C | UL Style 2493 | 7 | 32 AWG | Poly-Vinyl Chloride (PVC) | Computer | 24 AWG | Drain Wire | 1.219 mm | 0.048 in | 300 VDC | Multi-Pair | Braid Foil | Chrome | Foam Polyethylene (FPE) | 0.359 in | 9.12 mm | 6 | 152.4 m | 500 ft | ||
 Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | Copper Tinned | 60 °C | -40 C | UL Style 2493 | 7 | 32 AWG | Poly-Vinyl Chloride (PVC) | Computer | 24 AWG | Drain Wire | 1.219 mm | 0.048 in | Multi-Pair | Braid Foil | Chrome | Foam Polyethylene (FPE) | 0.359 in | 9.12 mm | 6 | 100 ft | 30.5 m |
