C146 10F025 Series
Manufacturer: Amphenol Tuchel Industrial
Beta
⌘K

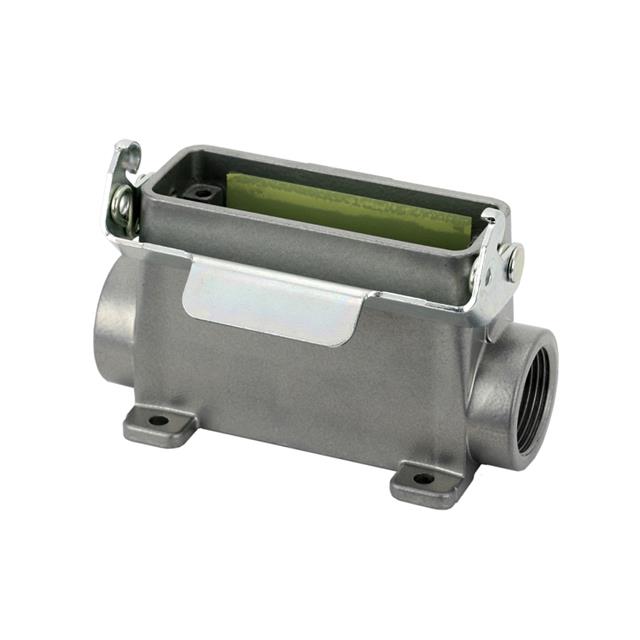

CONN BASE SIDE ENTRY SZA16 PG16
| Part | Lock Location | Connector Type | Style | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Housing Material | Size | Thread Size | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol Tuchel Industrial | Locking Clip (1) on Base Bottom | Base - Box Mount | Side Entry | IP65 - Dust Tight Water Resistant | -40 C | 100 °C | Aluminum Alloy Die Cast | A16 | PG16 | 101 mm | 50 mm | 57 mm | 1.969 in | 3.976 in | 2.244 " |
